Portable Navigation System Installation Kit

Navigation system, portable, installation kit TMC

Equipment














Component overview










Operation number: 39732











Information

- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

Conditions




Set the ignition key to position 0.

Removal

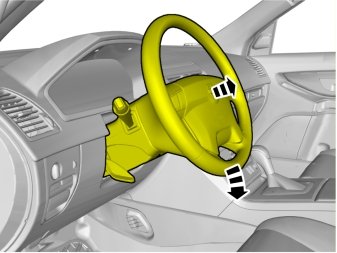

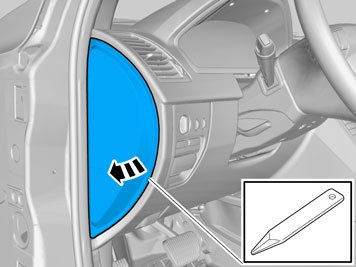

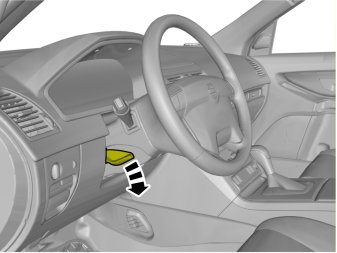

Remove the panel.

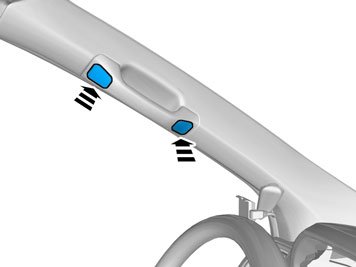

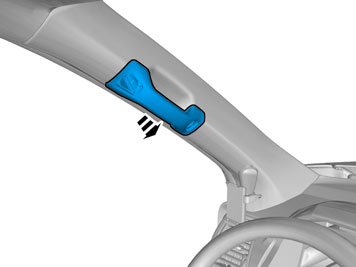

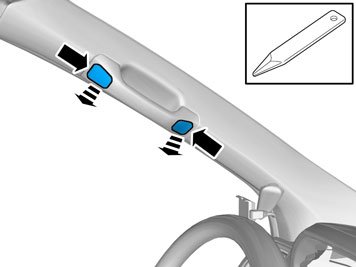

Release the lock.

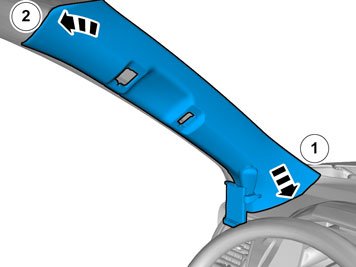

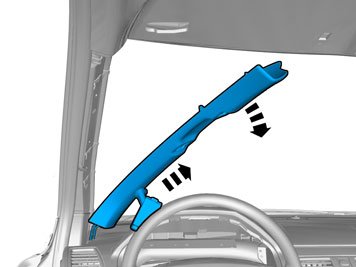

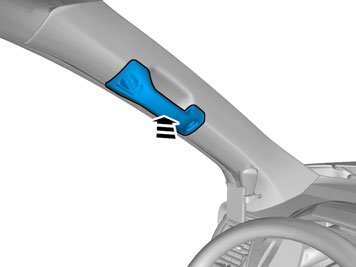

Detach the panel.

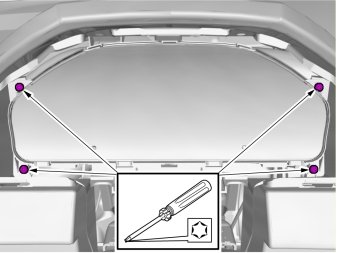

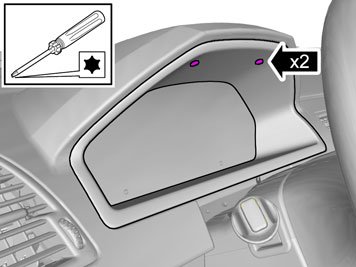

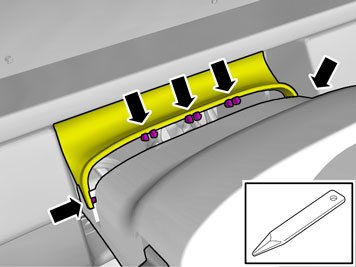

Remove the screws.

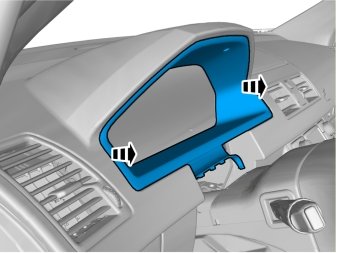

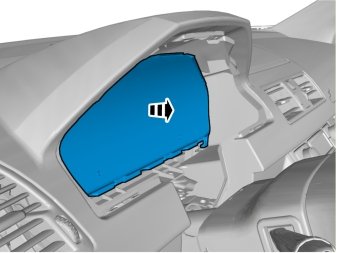

Remove the panel.

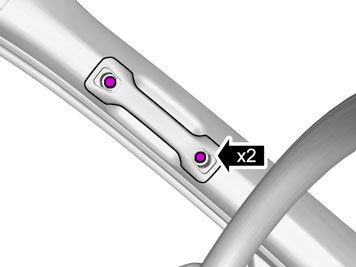

Remove the screws.

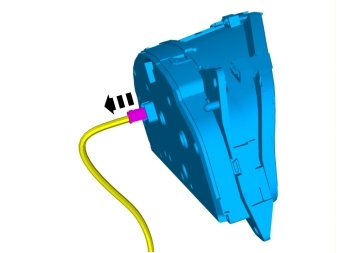

Disconnect the connector.

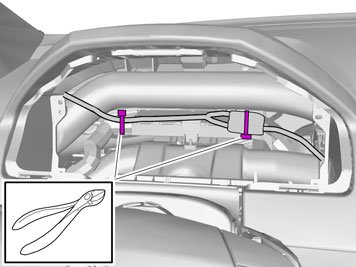

Remove the cable tie(s).

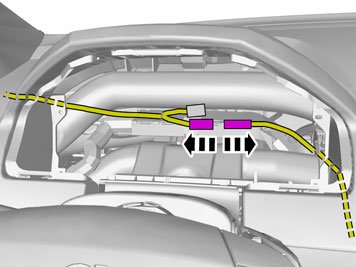

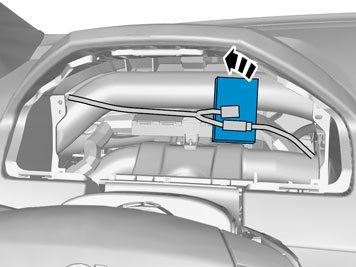

Disconnect the connectors.








Remove the screws.

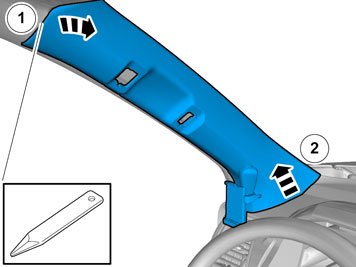

Detach the panel.

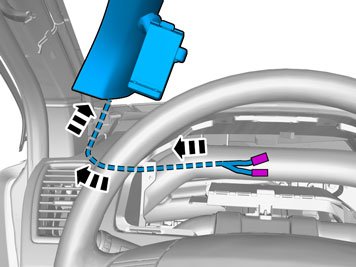

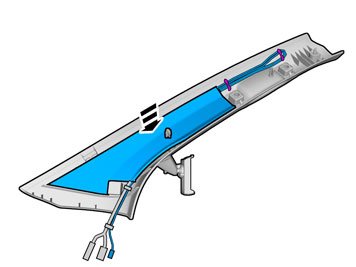

Pull the wiring through.

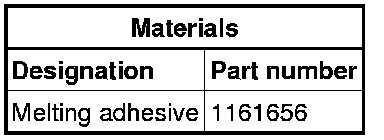

Use: Melting adhesive, 1161656








Pull the wiring through.

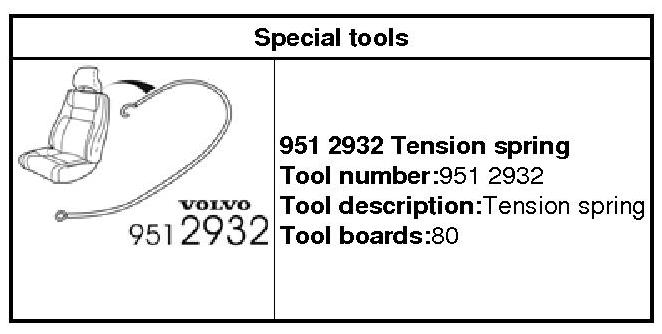

951 2932 Tension spring 951 2932 Tension spring




Install the panel.








Reinstall the screws.








Connect the connectors.




Tear off the excess foam tape.




Clamp the cables and connectors to the existing cables to prevent noise.
Reinstall the removed parts in reverse order.

Kit Numbers:
31330255
31334558
