Checking Error Message For Parking Assistance Camera

Checking error message for parking assistance camera

Fault-tracing information

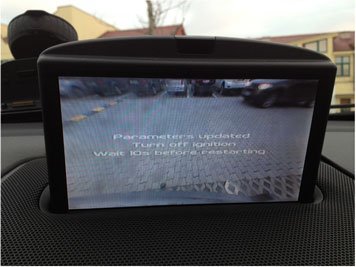

When reverse gear is engaged the text message: "Parameters updated Turn off ignition Wait 10 s before restarting", may be shown on the HLDF-screen. When the text message is shown on the screen the yellow help lines are not visible. This is an intermittent failure. Therefore the text message disappears when the vehicle has been restarted. This is due to a software problem in Parking Aid Camera Module (PAC).





Is the vehicle equipped with the latest version of Parking Aid Camera Module (PAC)?

Yes - Downloading software

No - Fault-tracing information

-------------------------------------------------

Downloading software
A new software is available for Parking Aid Camera Module (PAC). Go to tab SOFTWARE and download the latest software.

Does the problem persist?

Yes - Fault-tracing information

No - FAULT FOUND

-------------------------------------------------

Fault-tracing information
Replace control module if it is of the older version.
After replacing control module. Go to tab SOFTWARE and download the latest software to Parking Aid Camera Module (PAC).

Does the problem persist?

Yes - Fault-tracing information

No - FAULT FOUND

-------------------------------------------------






Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - Exit fault-tracing

No - Attempt New Test

------------------------

Attempt New Test - Fault-tracing information

FAULT-TRACING FAILED - FAULT FOUND

-------------------------------------------------
