Bluetooth Control Module

Operation number: 39420-2

Bluetooth control module

Removal























Vehicles with After Theft System for Vehicle Recovery (ATSVR)

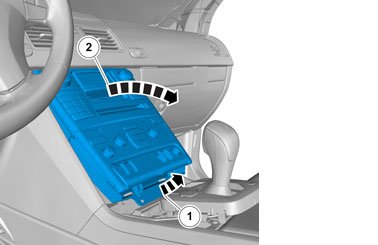

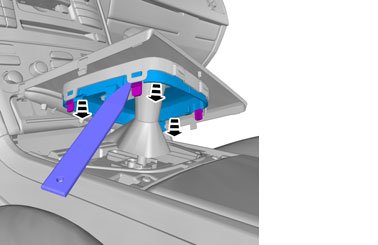

Caution! Only use moderate force.

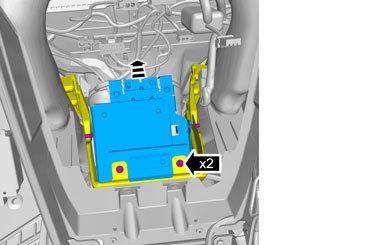

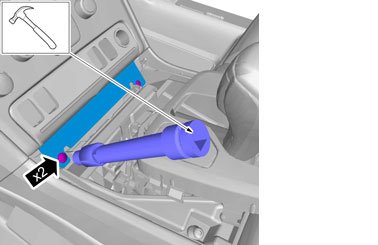

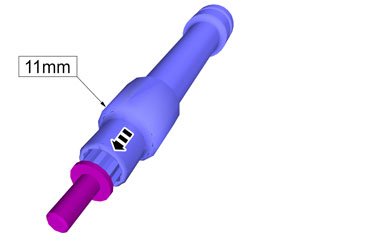

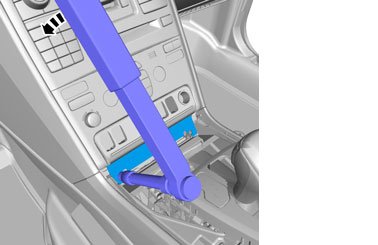

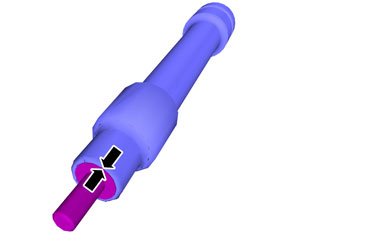

Caution! Make sure that the component is secured with shear bolt (or bolts).

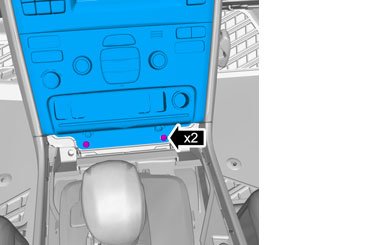

All vehicles

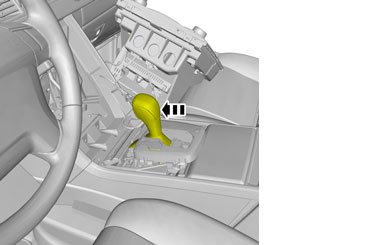

Caution! Take extra care when handling the component.

Caution! Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.

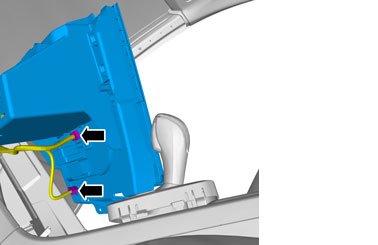

Note! Make sure that the component terminals are not bent or damaged.

Installation

To install, reverse the removal procedure.

Order and download software.
