Procedures

Alarm, movement sensor

Equipment

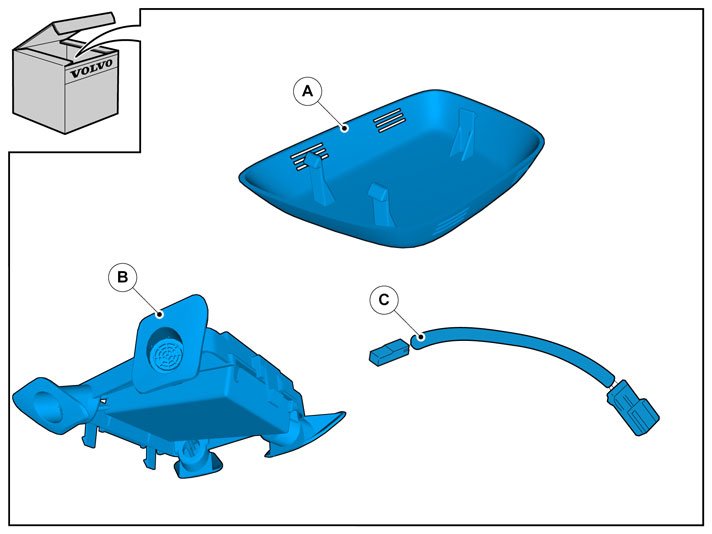

Component overview










Operation number: 36677

Information

- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimis the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

Conditions




Set the ignition key to position 0.

Removal




The part is not to be reused.

Accessory installation

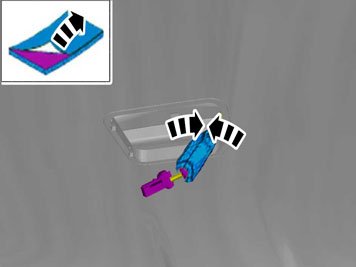

Connect the cable harness.

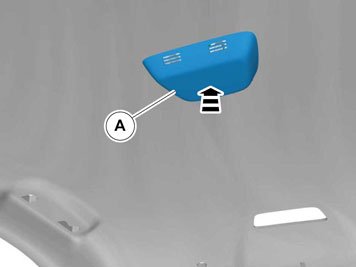

Tear off the excess foam tape.

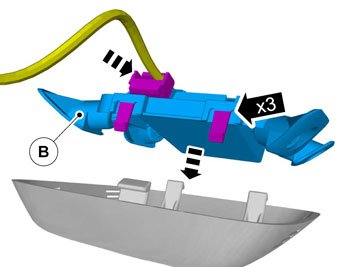

Connect the connector.








Download software (application) for the accessory's function.

Kit Numbers:
9438248
30659528
39814110
39814555
