Computer/Controls - Differential Electronic Module Parameters

Technical Journal

TITLE:
MY 2013 XC70 Differential Electronic Module (DEM)
Parameters in VIDA

CAR MARKET:
United States and Canada

ISSUING DEPARTMENT:
Technical Service

REF NO:
TJ 27313

ISSUE DATE:

YEAR
2013

MONTH
01

DAY
17

PARTNER:
3 US 7510 Volvo Cars North America

FUNC DESC:
Final drive; Automatic Operation Clutch

FUNC GROUP:
4651

"Fixed Right - First Time"

Attachment

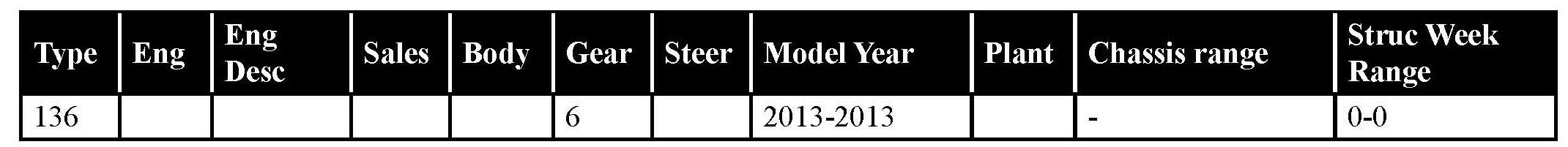

Vehicle Type

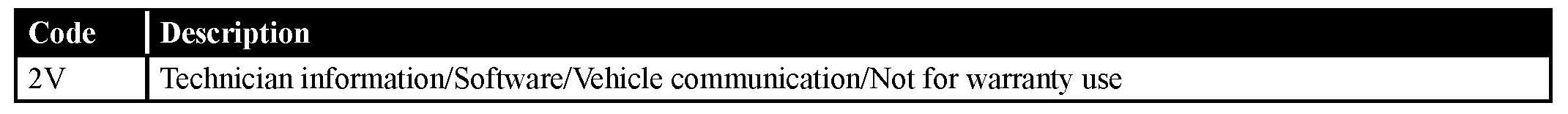

CSC Customer Symptom Codes

DTC Diagnostic Trouble Codes

Text

Note! If using a printed copy of this Technical Journal, first check for the latest online version.

DESCRIPTION:
There are no parameters, activations, or advanced vehicle communication services available in VIDA for the profile XC70(08-), 2013, TF-80SC AWD. The text "No information available" will be displayed when accessing DIAGNOSTICS/VEHICLE COMMUNICATION/DEM.

SERVICE:
To access the DEM part of the vehicle communication, please manually specify the vehicle as a 2013 XC60 T6 AWD instead.

Below is a short instruction on how to do this:
- Read out VIN of the car, under DEFINE VEHICLE tab.
- Go to tab START, click "PERFORM COMPUTER SETTINGS".
- Set "VIN Decoding" to "OFF".
- Click "CONTINUE", then "OK".
- Go to DEFINE VEHICLE tab again. (Text "VIN decoding Off" should now be displayed in red color.)
- Set Model to "XC60", Year to "2013", Engine to "B6304T4", and Transmission to "TF-80SC AWD".
- Click "OK". (Important since this is when the manually specified vehicle type is accepted by VIDA. The Window title is now changed to " XC60, 2013...")
- Go to tab DIAGNOSTICS.
- Go to VEHICLE COMMUNICATION, click DEM.

The tabs "Parameters", "Activations", and "Advanced" should now be available for DEM.
