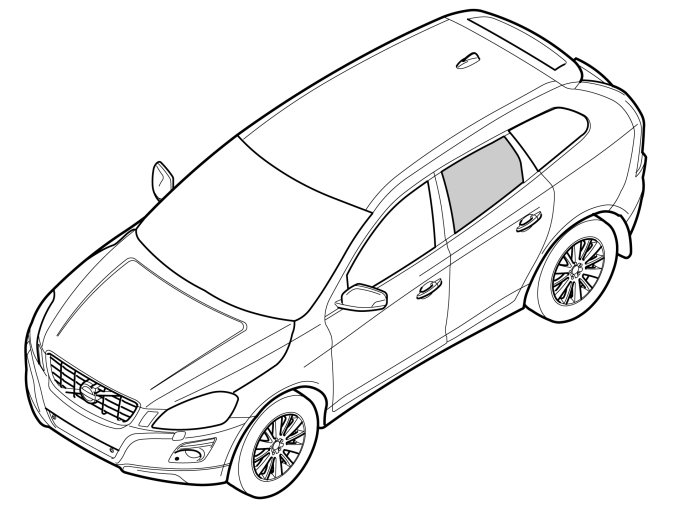

Sun Blind, Rear Door

Sun blind, Rear door























INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimise the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Sun blind, Rear door

Installation of the sun blind

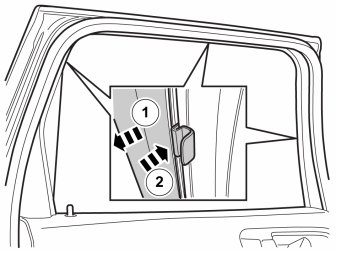

- Open the rear door. Move the rubber strip on the door arch's upper and front edge to one side in order to access the panel edges.
- Install the clips, as illustrated.





- Reinstall the rubber strip.

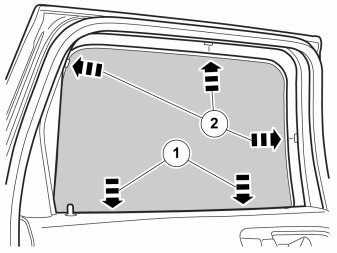

- Position the sun blind's lower edge on the panel at the lower edge of the side window. Then press it into the three clips.
- Repeat the operation on the other side.
