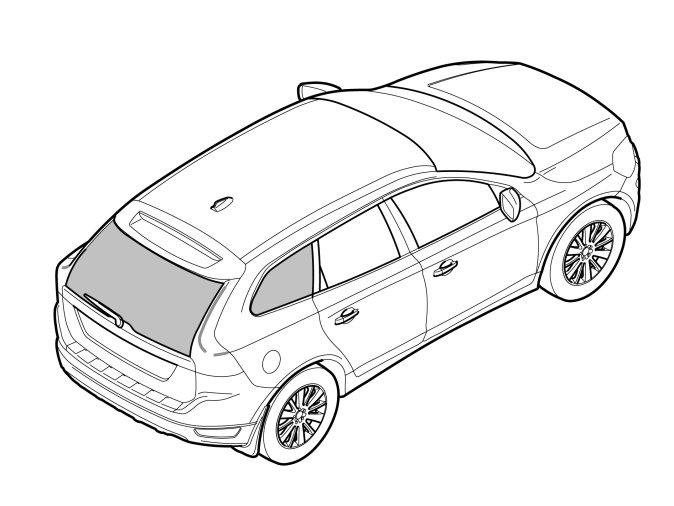

Sun Blind, Luggage Compartment

Sun blind, luggage compartment



























INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimise the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Sun blind, luggage compartment

Installation of blind

Side window

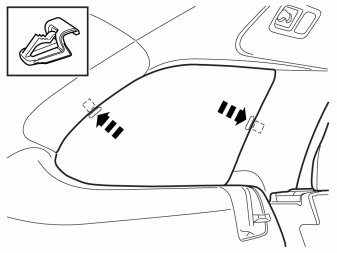

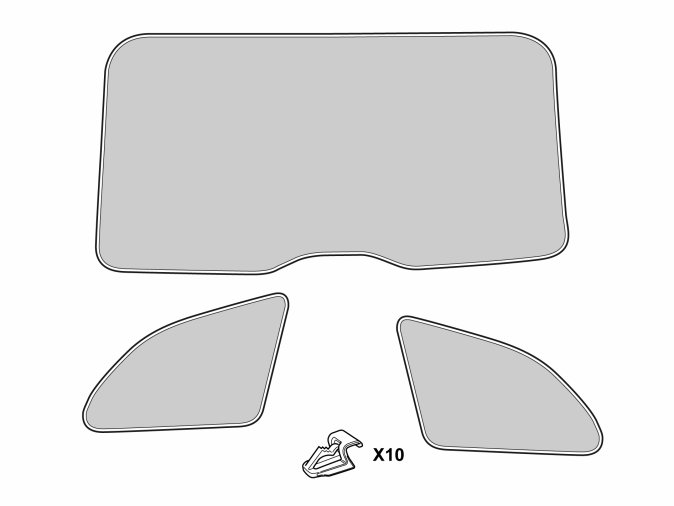

- Take two clips from the kit. Press the clips between the panel and window, as illustrated. Use a weatherstrip tool to widen the gap between the window and panel.

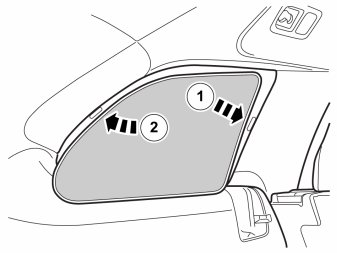

- Place the blind in the clips, first at the front edge and then at the rear edge.
- Repeat the operation on the other side.

Boot lid

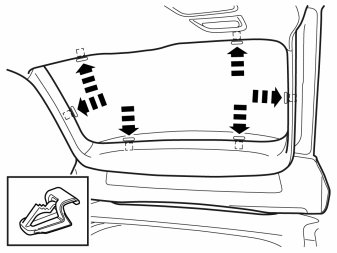

- Press six clips between the panel and window, as illustrated. Use a weatherstrip tool to widen the gap between the window and panel.





- Place the lower edge of the blind into the clips, then the upper edge and then the sides.
