Removal and Replacement

Operation number: 45104-2

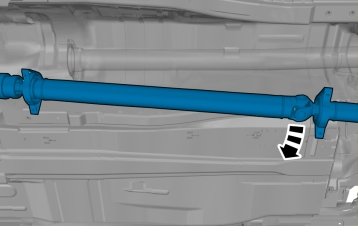

Propeller shaft






Removal

Note! Removal steps in this procedure may contain installation details.

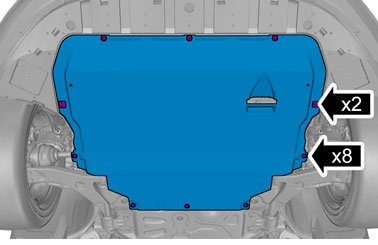

Torque: M8, 24 Nm





Note! Note the position of the component before removal.

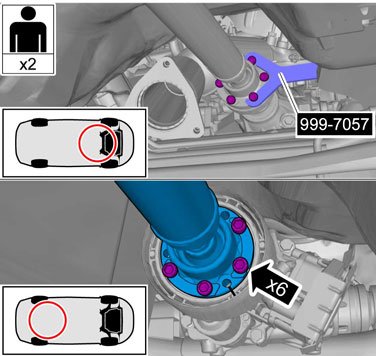

Torque: Prop shaft, CV joint Stage 1: Crosswise 10 Nm Stage 2: Crosswise 25 Nm

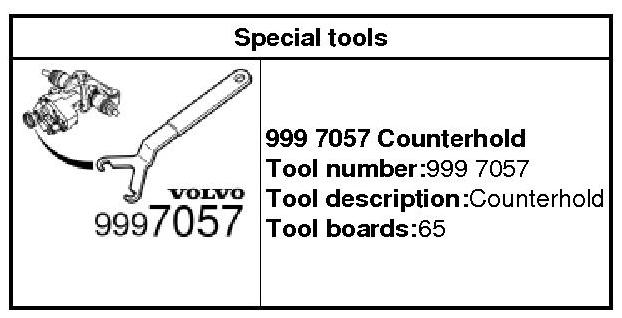

999 7057 Counterhold 999 7057 Counterhold





Note! Note the position of the component before removal.

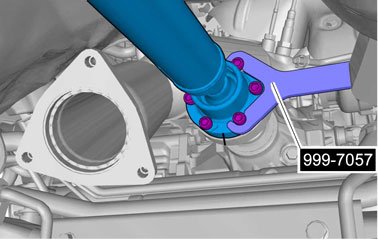

999 7057 Counterhold 999 7057 Counterhold
Torque: Prop shaft, CV joint Stage 1: Crosswise 10 Nm Stage 2: Crosswise 25 Nm

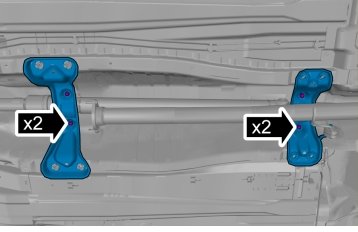

Torque: M8, 24 Nm

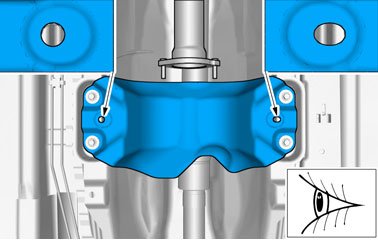

Torque: Prop shaft, center bearing, 30 Nm





Installation

To install, reverse the removal procedure.
