Knob, Gear Shift Selector






Operation number: 43212-2

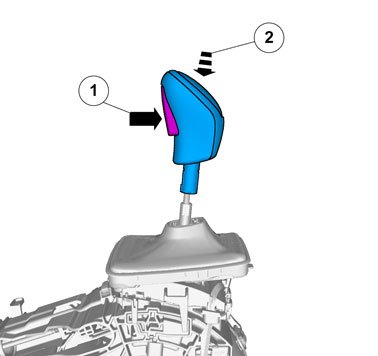

Knob, gear shift selector

Removal

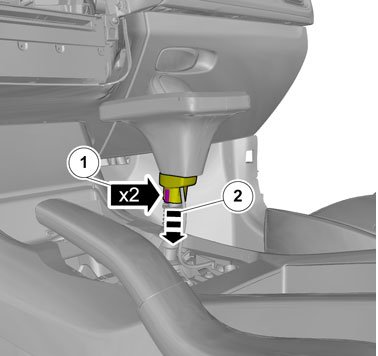

Remove center console Refer to: Center console, TF-80SC AWD, TF-80SC Center Console

















Hint: Mark the location of the component.

























Installation

To install, reverse the removal procedure.
