Sealing Ring, Gear Shift Linkage Rod






Operation number: 43731-2

Sealing ring, gear shift linkage rod






Removal

Remove the transmission control module (tcm)

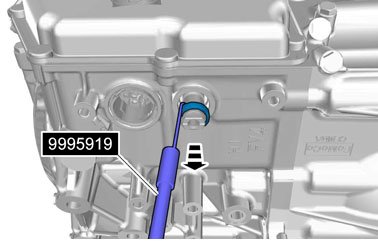

999 5919 PULLER 999 5919 PULLER

Installation

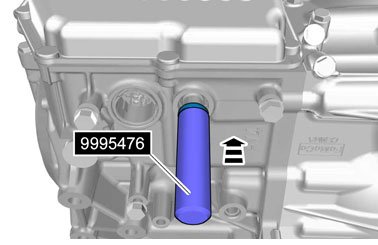

999 5476 PUNCH 999 5476 PUNCH

To install, reverse the removal procedure.
