Wheel Hub: Service and Repair

Operation number: 77381-277382-2

Rear wheel hub

Removal

Note! Removal steps in this procedure may contain installation details.

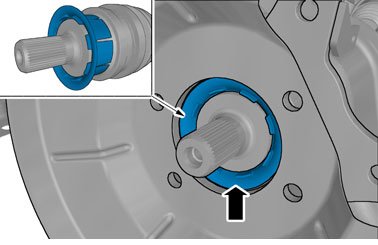

Warning! Do not use magnets or magnetic tools close to tooth wheels, drive shafts or wheel hubs. A magnetized tooth wheel will lose its function and generate incorrect signals resulting in fault codes.

Note! Any magnetized tooth wheel, drive shaft or wheel hub must be replaced with a new component.

Remove the wheel Refer to: Wheels Service and Repair




Torque: Driveshaft to wheel hub (rear), 35 Nm





Warning! Make sure that no load is placed on the brake hose.

Torque: Mount rear brake caliper, 110 Nm




Torque: Rear brake disc to wheel hub, 35 Nm








Torque: M10, 50 Nm




Torque: Wheel bearing rear to wheel knuckle, 110 Nm





Installation





Caution! Make sure that the component is positioned correctly.

To install, reverse the removal procedure.
