Rear Shock Absorber

Rear Shock Absorber

Removal

Note! Removal steps in this procedure may contain installation details.

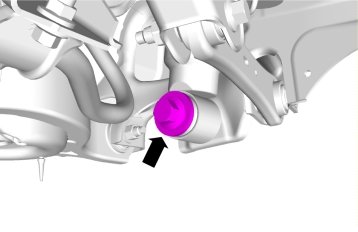

1. Torque: Rear shock absorber to wheel spindle, early version with M14-screw partnumber 999491, 175 Nm

2. Torque: Rear shock absorber to wheel spindle, late version with M14-screw partnumber 30624310, 150 Nm

3. Torque: Rear shock absorber to wheel knuckle, Nivomat with M16 thread, 280 Nm

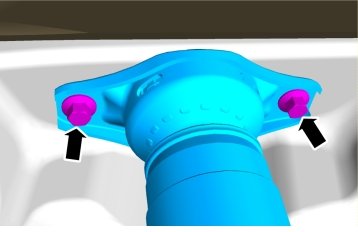

Torque: Bearing rear shock absorber to body, 30 Nm

Installation

To install, reverse the removal procedure.
