Overhaul

Front Strut and Spring Assembly






Removal

Note! Removal steps in this procedure may contain installation details.

Remove Front Strut and Spring Assembly Refer to: Front Strut and Spring Assembly, TF-80SC AWD, TF-80SC Front Strut And Spring Assembly




Torque: Bearing front shock absorber to shock absorber, 50 Nm

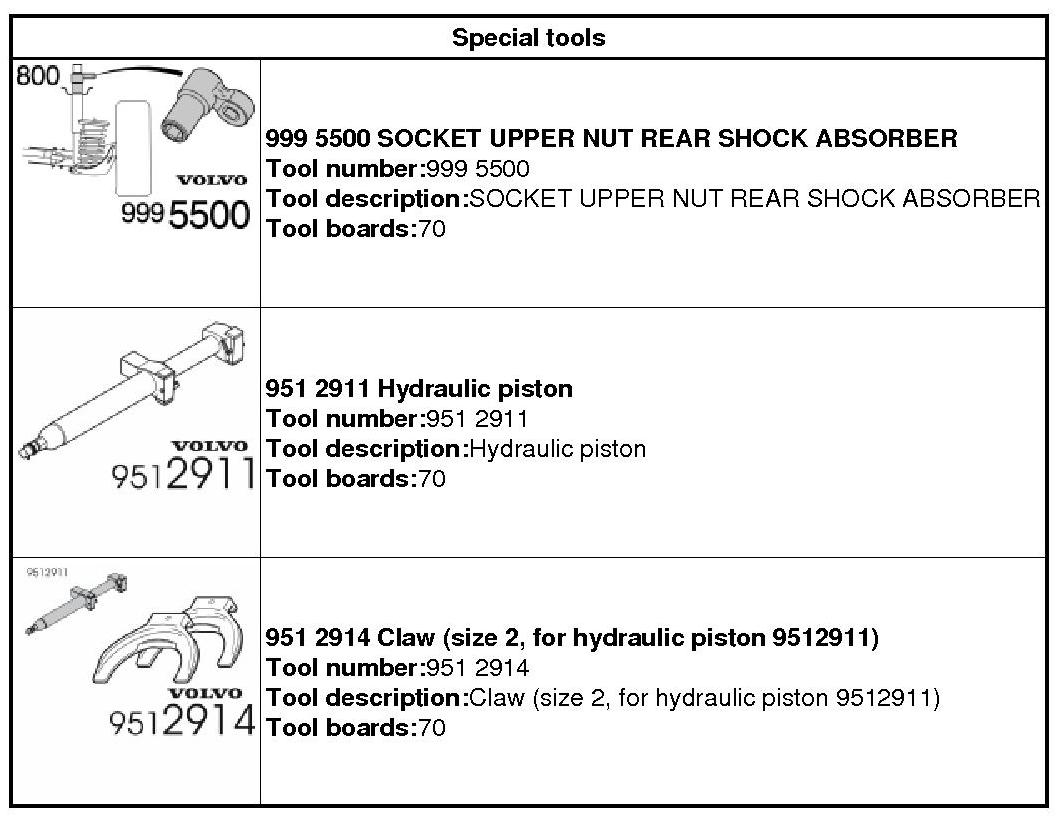

999 5500 SOCKET UPPER NUT REAR SHOCK ABSORBER 999 5500 SOCKET UPPER NUT REAR SHOCK ABSORBER 951 2911 Hydraulic piston 951 2911 Hydraulic piston 951 2914 Claw 951 2914 Claw





Note! Note the position of each component before removal.





Installation

To install, reverse the removal procedure.

Vehicles with high intensity discharge headlamps

Calibrate position sensor and resistance

All vehicles
