Front Control Arm

Operation number: 61202-261203-2

Front control arm






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the wheel Refer to: Wheels Service and Repair




Torque: Driveshaft to wheel hub (front) Stage 1: 35 Nm Stage 2: 90 degree

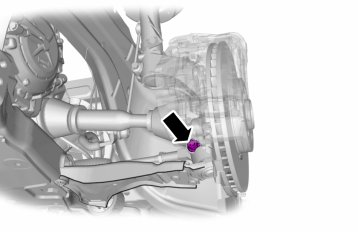

Torque: Ball joint to wheel knuckle, 110 Nm

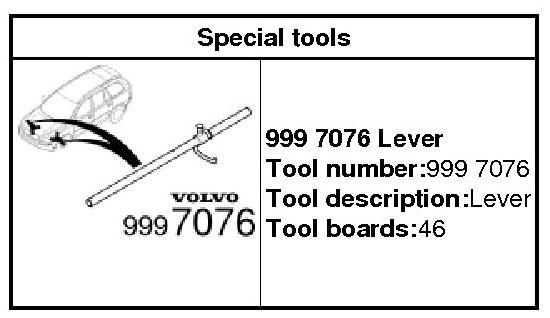

999 7076 Lever 999 7076 Lever





Remove the following items:
1. Torque: Lower arm front to subframe (front mounting) Stage 1: 140 Nm Stage 2: 45 degree

2. Torque: Lower arm front to subframe (rear mounting), 175 Nm

3. Torque: Lower arm front to subframe (rear mounting), 175 Nm

Installation

To install, reverse the removal procedure.
