Steering Arm Outer

Steering arm outer






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the wheel Refer to: Wheels Service and Repair





Caution! Make sure that the ball joint ball does not rotate.

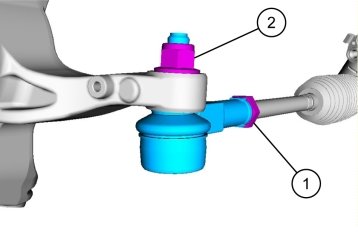

1. Torque: Track rod end to track rod, 90 Nm

2. Torque: Tie rod end to wheel knuckle, 80 Nm




951 2945 Puller 951 2945 Puller

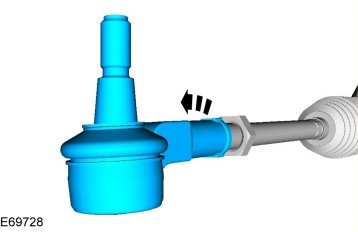

Note! Make sure that the tie rod end is installed with the same number of turns as when removed.

Installation

To install, reverse the removal procedure.

Perform wheel angles check Refer to: Wheel angles, check Service and Repair
