Front Steering Knuckle: Service and Repair

Wheel knuckle front

Removal

Note! Removal steps in this procedure may contain installation details.

Warning! Do not use magnets or magnetic tools close to tooth wheels, drive shafts or wheel hubs. A magnetized tooth wheel will lose its function and generate incorrect signals resulting in fault codes.

Note! Any magnetized tooth wheel, drive shaft or wheel hub must be replaced with a new component.

Remove the front brake disc Refer to: Front brake disc, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC AWD, B6324S4, TF-80SC Brake Disc Front, Replacing

Torque: M6, 10 Nm

Torque: M5, 5 Nm

Torque: Driveshaft to wheel hub (front) Stage 1: 35 Nm Stage 2: 90 degree

Warning! Make sure that a new nut is installed.

Caution! Make sure that the ball joint ball does not rotate.

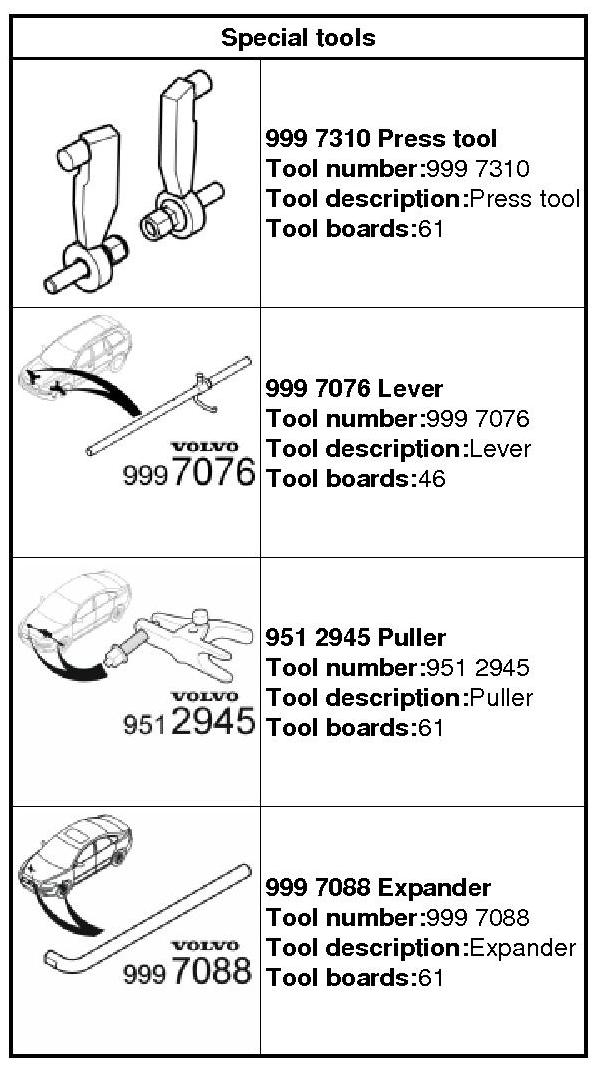

999 7310 Press tool 999 7310 Press tool
Torque: Ball joint to wheel knuckle, 110 Nm

999 7076 Lever 999 7076 Lever

Caution! Make sure that the ball joint ball does not rotate.

951 2945 Puller 951 2945 Puller
Torque: Tie rod end to wheel knuckle, 80 Nm

Torque: Wheel knuckle to strut and spring assembly, 110 Nm

999 7088 Expander 999 7088 Expander

Installation

To install, reverse the removal procedure.
