System Overview

System overview

General
Alcohol Analysing Start Inhibitor is an option on the S60/V60/S80/V70/XC60/XC70 from model year 2008 and on the C30/C70/S40/V50 from model year 2009 as well as on the V40 model year 2013-. The Alcohol Analysing Start Inhibitor is not found in vehicles with keyless entry.
The following are included in the Alcohol Analysing Start Inhibitor system:
- Central electronic module (CEM)
- Driver information module (DIM)
- Remote Receiver Module (RRX)

Signals

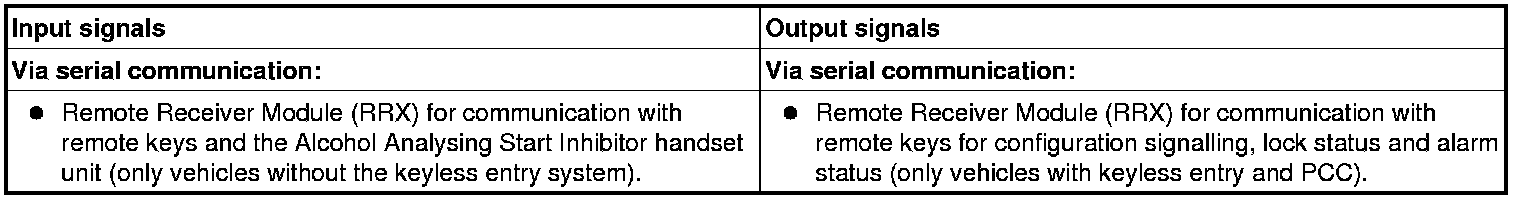

The table below summarizes the input signals and output signals to and from the Central electronic module (CEM).
