Extra Battery

Operation number: 31118-2

Extra battery

Removal

Note! Removal steps in this procedure may contain installation details.

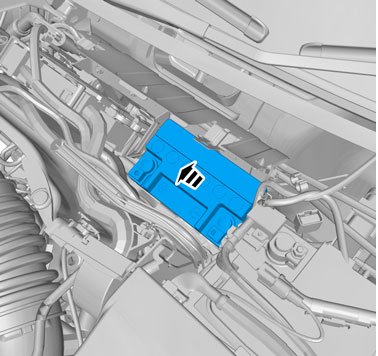

Remove the plenum cover Refer to: Cowl Panel Cover Service and Repair

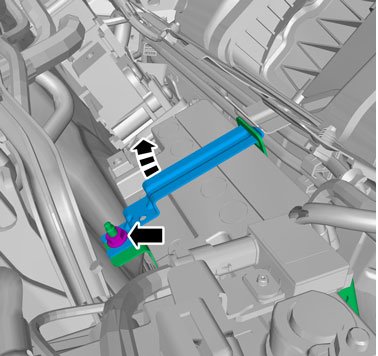

Torque: Battery cable terminal for extra battery, 7 Nm




Torque: M6, 10 Nm





Perform troubleshooting and test the battery Refer to: Fault-tracing and testing the battery Fault-Tracing And Testing The Battery

Installation

To install, reverse the removal procedure.
