Inflatable Curtain

Operation number: 88451-2

Inflatable curtain

Removal

Note! Removal steps in this procedure may contain installation details.

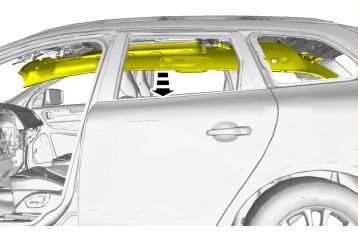

Detach the headliner with roof hatch





Perform battery disconnecting and connecting. Battery, Disconnecting

See information regarding the handling of non-deployed pyrotechnical parts Refer to: Handling non-deployed pyrotechnical part Handling Non-Deployed Pyrotechnical Part

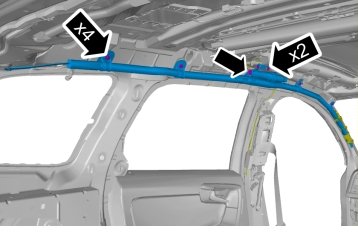

Torque: Inflatable curtain to the body, 8 Nm

Installation

To install, reverse the removal procedure.





Perform supplemental restraint system (SRS), post check Refer to: Supplementary restraint system (SRS), inspection Testing and Inspection
