Procedures

Metal pedals























INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimise the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

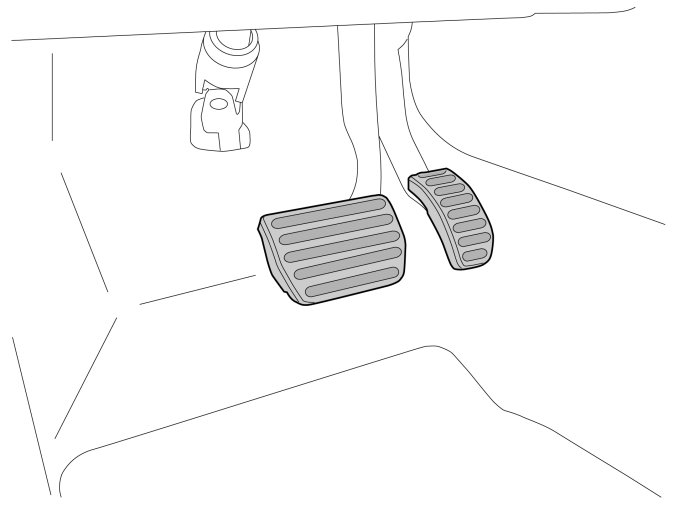

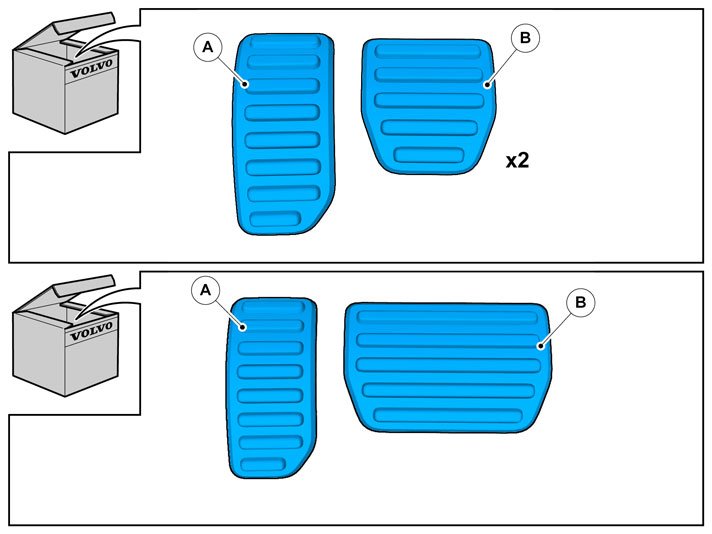

Metal pedals

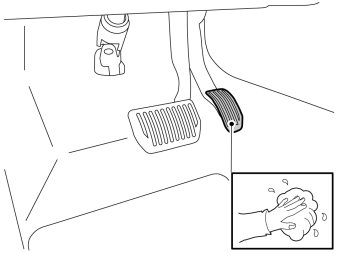

- Clean the surface.

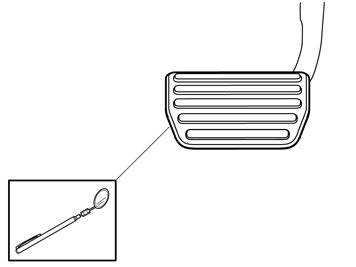

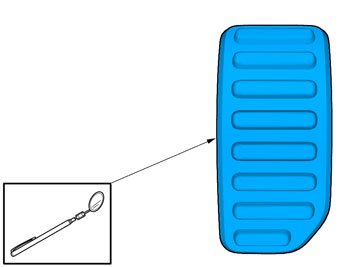

Caution! Using a mirror, check that the profiles of the protector are around the edges of the pedal.

Applies to right-hand drive vehicles

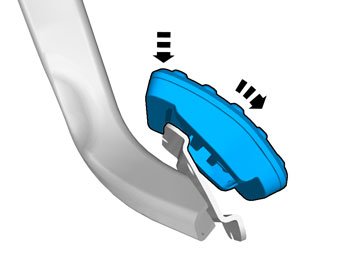

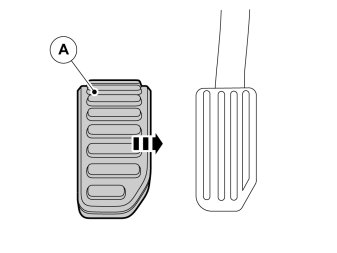

- Hook the cover onto the long side of the accelerator pedal.

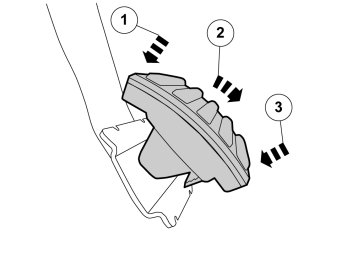

- Press the protector towards the pedal.

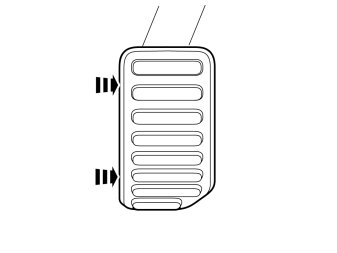

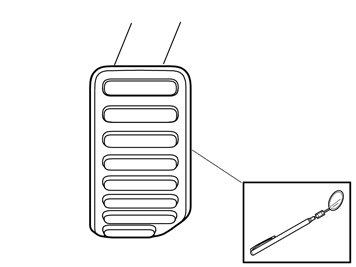

Caution! Using a mirror, check that the profiles of the protector are around the pedal.

Applies to cars with an automatic transmission





Note! The component(s) must not be reused.

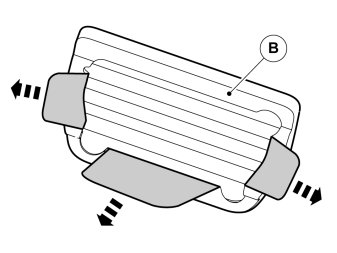

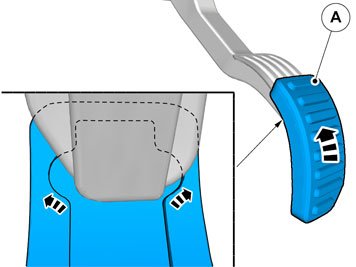

- Hold the pedal protector as illustrated and fold out the three tabs.

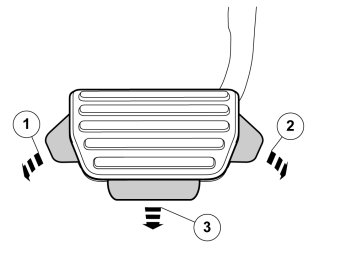

- Hook the protector on at the upper edge, at the same time hold the tabs and pull downwards.

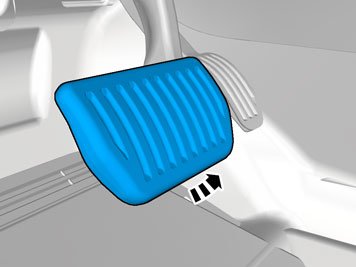

- Press the protector firmly onto the pedal.











Caution! Using a mirror, check that the profiles of the protector are around the edges of the pedal.

Applies to cars with manual gearbox





Note! The component(s) must not be reused.

Applies to cars with manual gearbox




- Hook the protector on to the brake pedal at the upper edge and pull downwards.

Applies to cars with manual gearbox

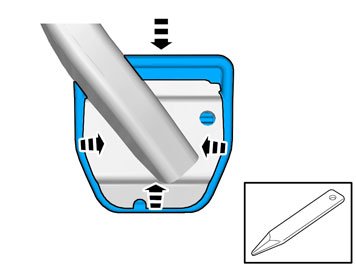

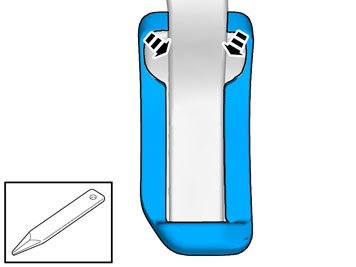

- Press the protector towards the pedal, at the same time as folding the protector's profile over using a weatherstrip tool. Important. Using a mirror, check that the profiles of the protector are around the edges of the pedal.
- Repeat the steps for the clutch pedal.
