Jacking Points, Body

This article uses a picture philosophy in the instructions for mechanical work methods. The instructions focus on the pictures and include text only if it is impossible to show the work method in the pictures. For further information, refer to: Images In Service Information

Jacking Points Body

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

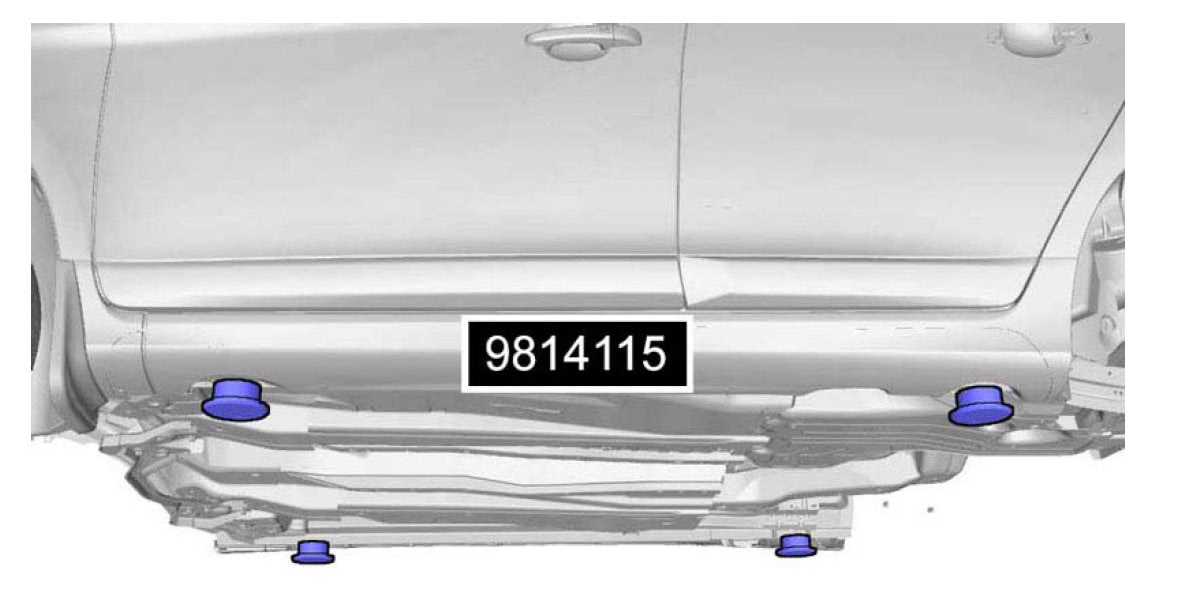

Special Tool: 981 4115

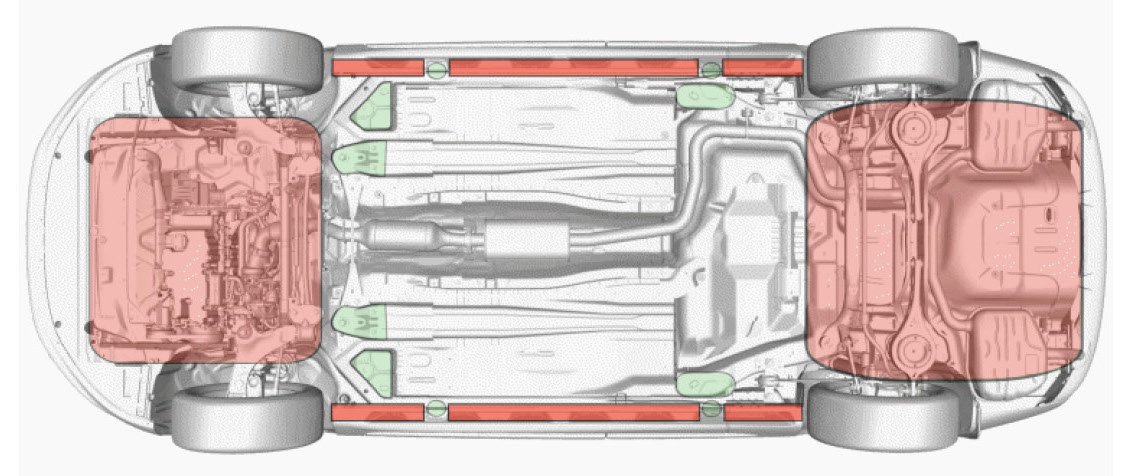

When lifting the vehicle, use the green-marked lifting points in the illustration. The lifting plate shall be provided with rubber so that the vehicle is not damaged.
