Return Hose, Power Steering

Operation number: 64531-2

Return hose, power steering






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:

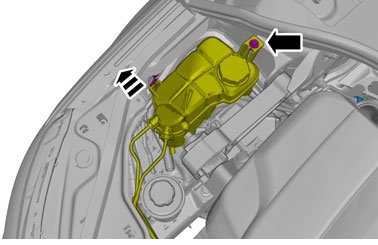

- Reservoir fluid power steering
- the right front wheel Refer to: Wheels Service and Repair

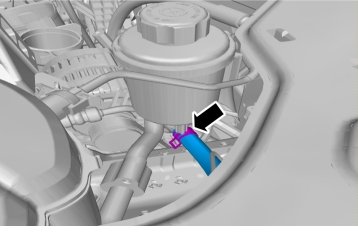

Warning! Be prepared to collect escaping fluid.

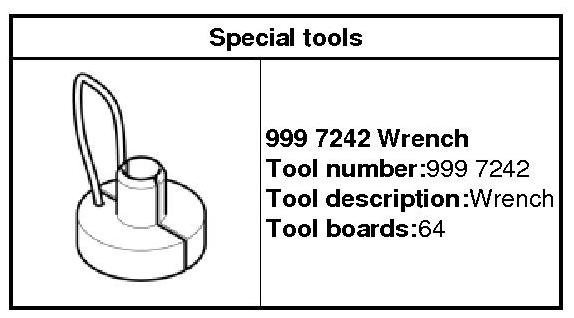

999 7242 Wrench 999 7242 Wrench




Torque: M6, 10 Nm









Installation

To install, reverse the removal procedure.

Perform power steering system, bleeding air
