Lighting - Headlamp May Vibrate

Technical Journal

TITLE:
Headlamp, vibration

CAR MARKET:
United States and Canada

ISSUING DEPARTMENT:
Technical Service

REF NO:
TJ 27277

ISSUE DATE:

YEAR
2013

MONTH
02

DAY
26

PARTNER:
3 US 7510 Volvo Cars North America

FUNC DESC:
Headlamp, vibration

FUNC GROUP:
3521

"Fixed Right - First Time"





Attachment

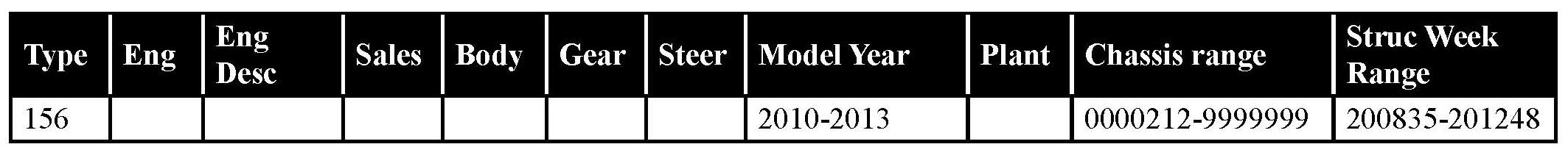

Vehicle Type

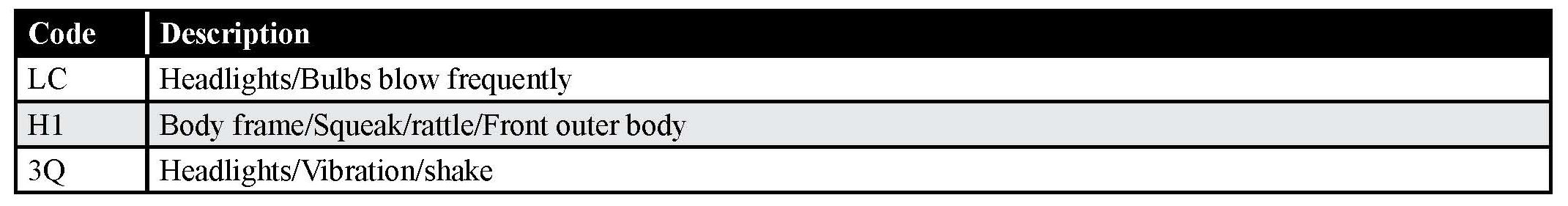

CSC Customer Symptom Codes

DTC Diagnostic Trouble Codes

Text

CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code

Note!
If using a printed copy of this Technical Journal, first check for the latest online version.

DESCRIPTION:
The headlamp may vibrate due to a broken fixation pin retainer.

SERVICE:

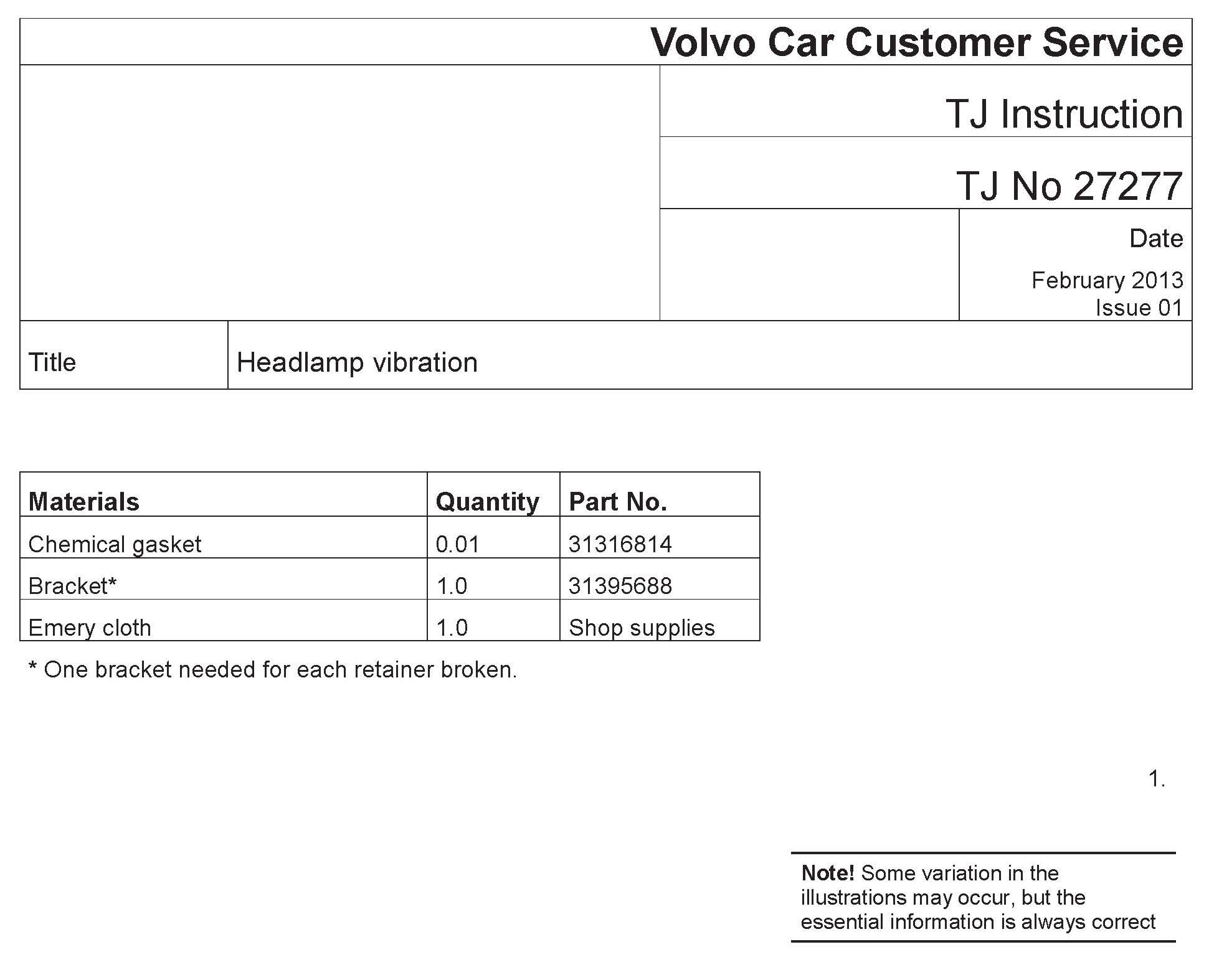

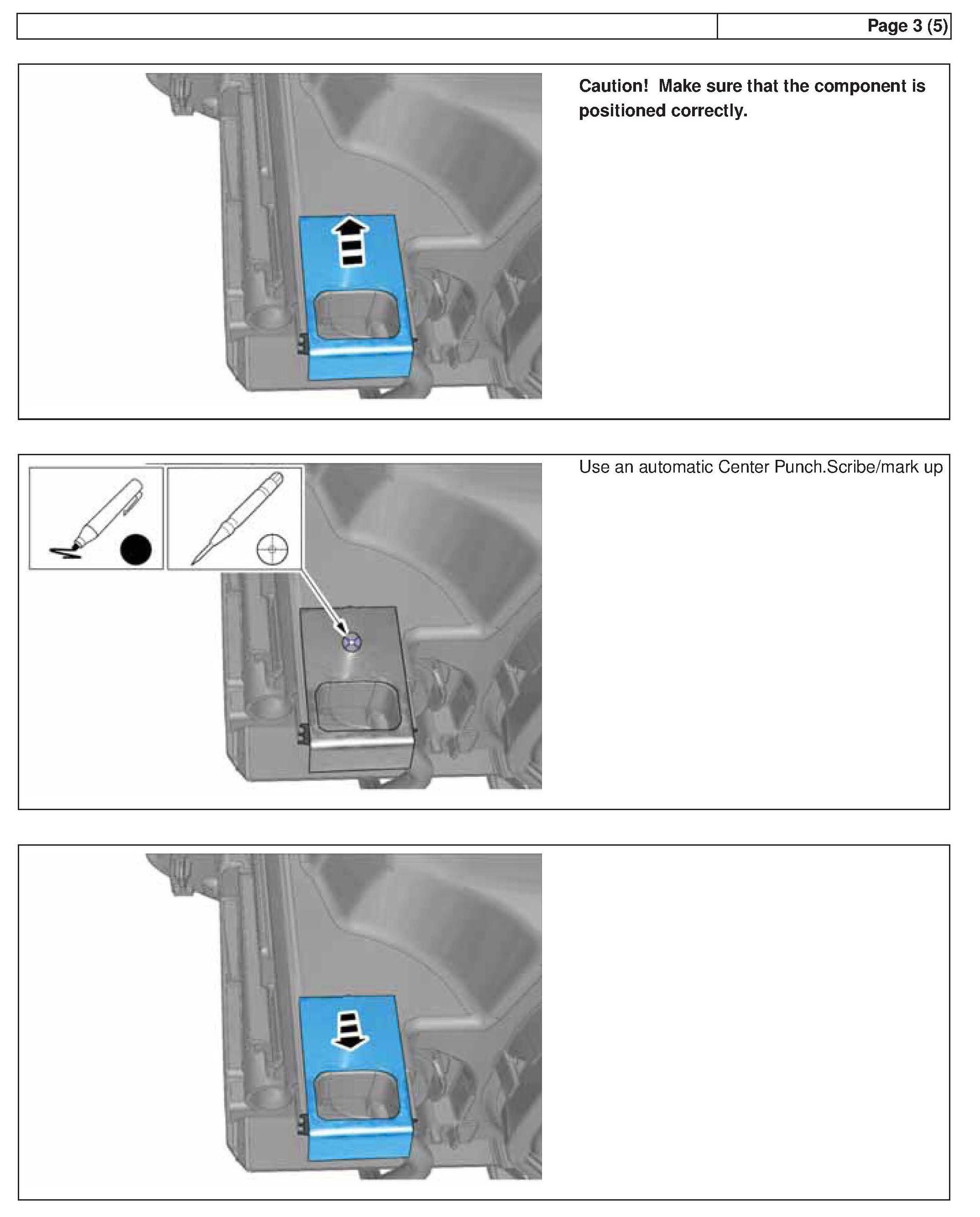

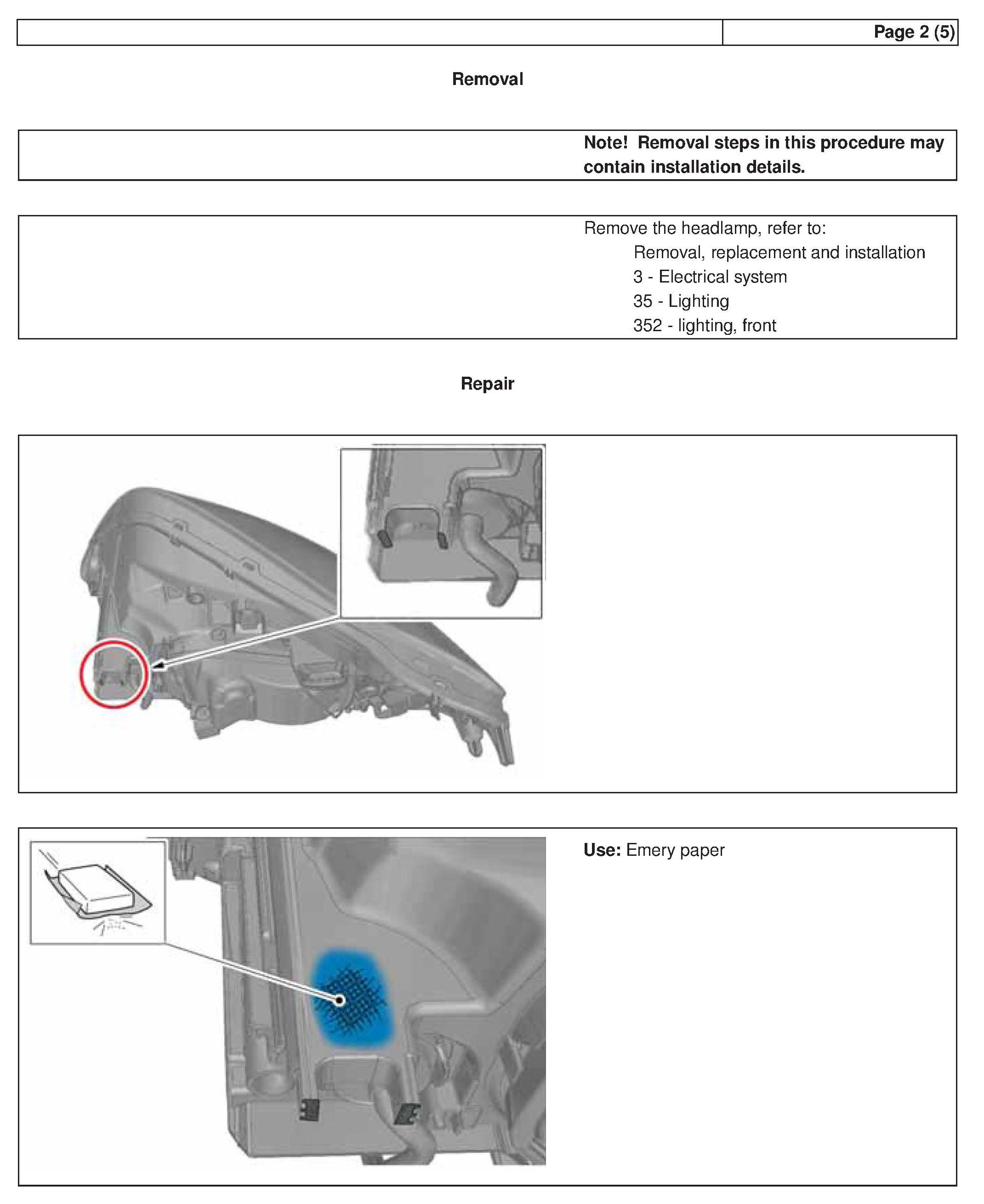

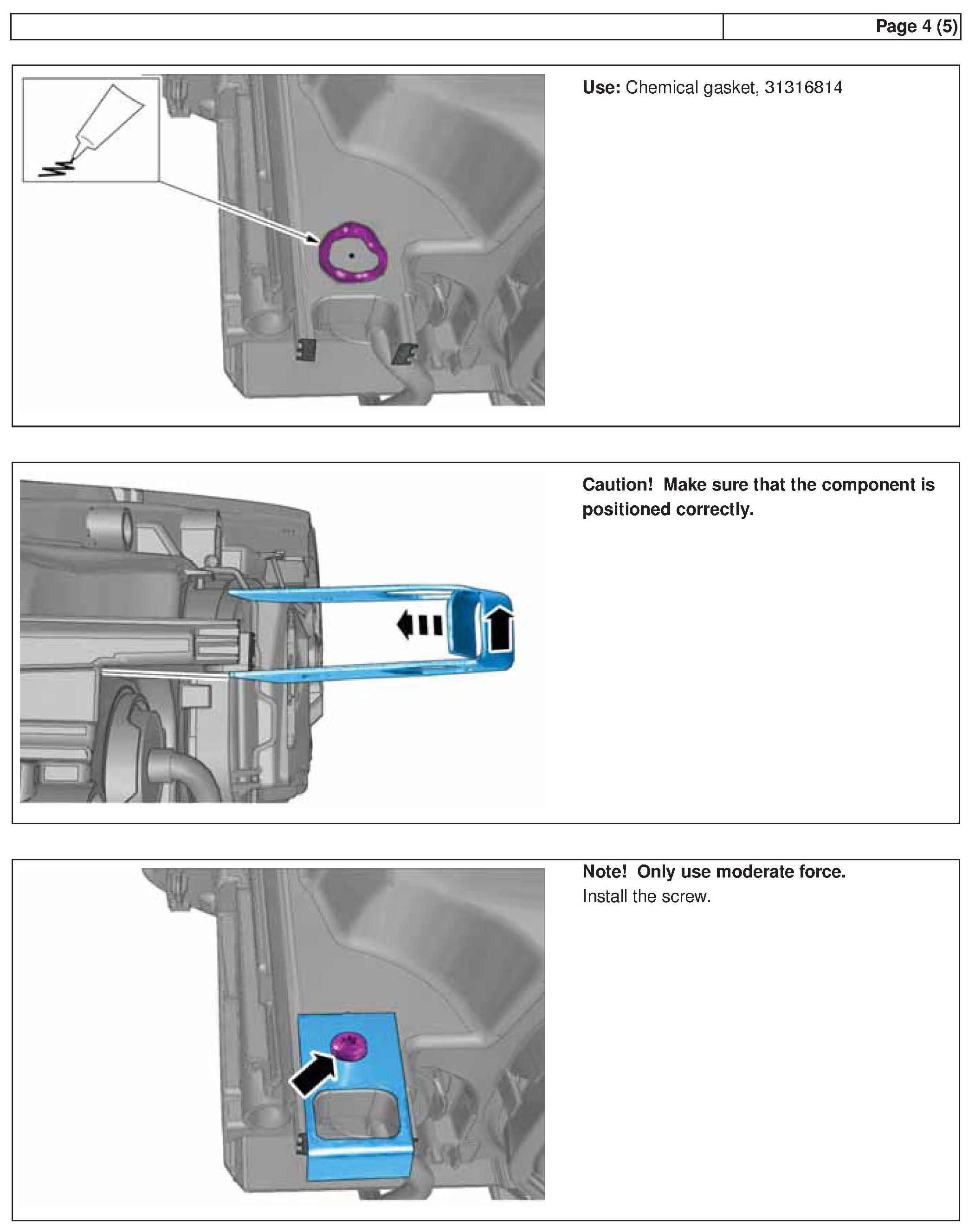

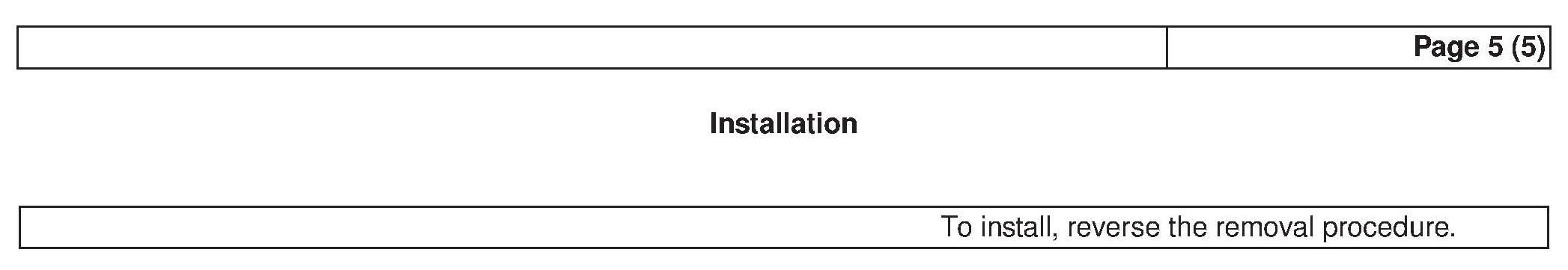

In case of customer complaints, check the headlamp retainer for damages. Repair the headlamp according to instruction.

PRODUCT MODIFICATION:
Improved headlamps has been implemented in production 2012 week 48.

VSTG OPERATION NUMBER:
98461-2 Headlight adjustment incl light setting 0.3 hrs

- Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01

- Labor times are valid at the time of release and are subject to change.

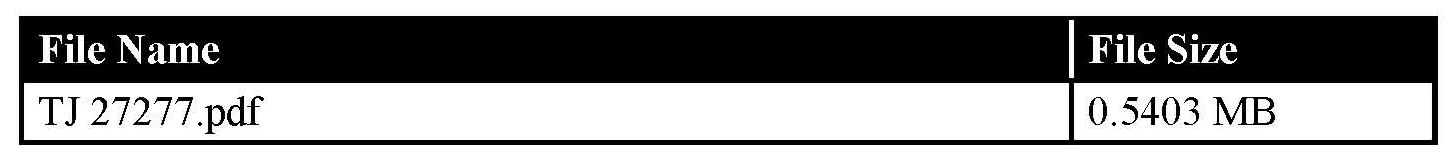

To view TJ attachments continue: This TJ has 1 attachment.
