Tail Lamp: Service and Repair

Operation number: 35330-235310-2

Tail lamp






Removal

Note! Removal steps in this procedure may contain installation details.

See the information regarding component location, tail lamp Refer to: Location of components, tail lamp. Locations

Remove side panel cargo compartment Refer to: Side panel loadspace Side Panel Loadspace

Loosen relevant side casing bumper rear Refer to: Cover bumper rear Service and Repair




Torque: M6, 10 Nm




Torque: M6, 10 Nm

Vehicles early version





Caution! Plug any remaining holes in the car body

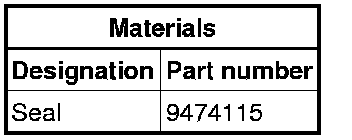

Use: Seal, 9474115

All vehicles

Installation

To install, reverse the removal procedure.
