Headlamp Bulb






Operation number: 35124-2

Headlamp bulb

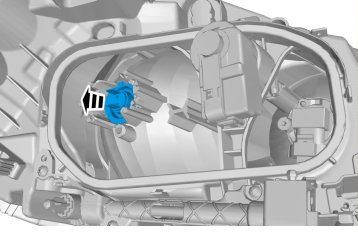

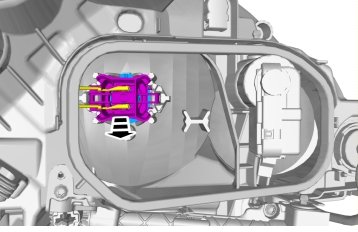

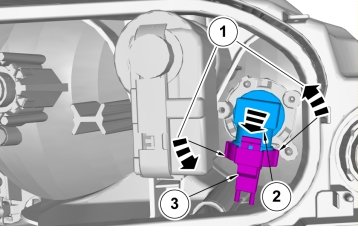

Removal

Remove the headlamp Refer to: Headlamps Service and Repair

See information on component position headlights Refer to: Component position headlights Component Position Headlights

















Installation

To install, reverse the removal procedure.
