Compressor Clutch: Service and Repair

Operation number: 87426-2

Electromagnetic clutch






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the auxiliaries belt Refer to: Accessory Drive Belt, B6324S5, B6324S4 , B6304T4 Service and Repair

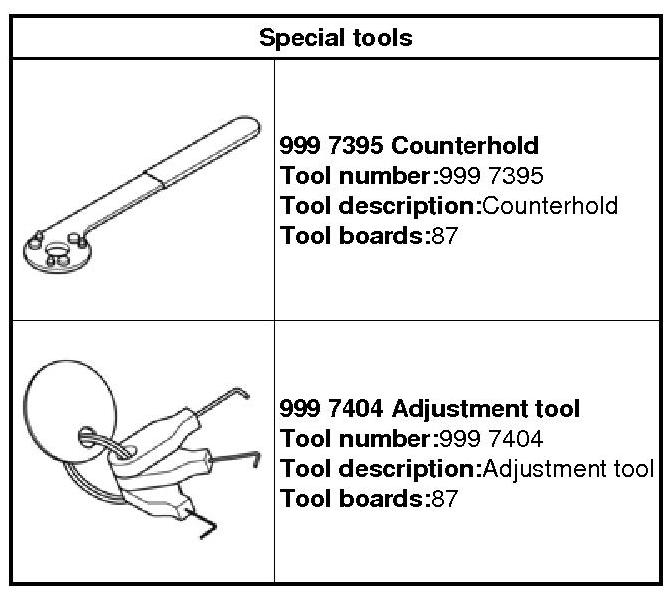

999 7395 Counterhold 999 7395 Counterhold
Torque: M7, 17 Nm








999 7404 Adjustment tool 999 7404 Adjustment tool













Installation

To install, reverse the removal procedure.
