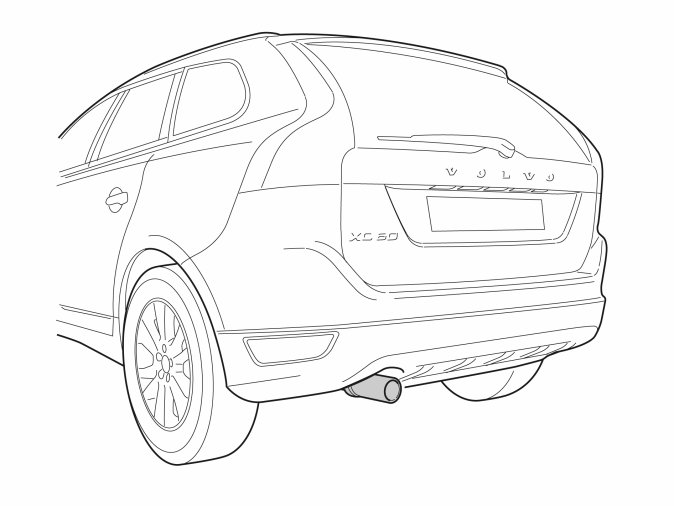

End Pipe, Single

End pipe, single



























INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimise the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






End pipe, single

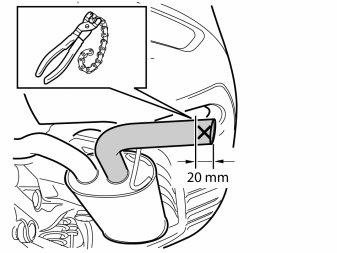

- Measure the distance as illustrated.
- Cut off the exhaust pipe using the pipe cutter.


Illustration A

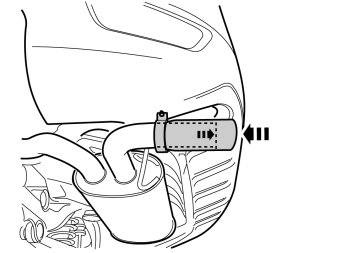

- Slide the end pipe onto the exhaust pipe until the cone inside the end pipe engages the exhaust pipe.

Illustration B





Illustration C




- Turn to the correct position.

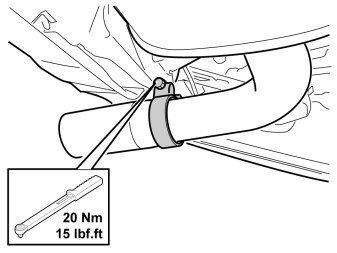

- Tighten the clamp. Recommended tightening torque 20 Nm (15 lbf.ft.)
- Post tighten the clamp to the correct torque after 5 minutes.
