Engine, Installing

Operation number: 21014-0

Engine, installing

Installation

Caution! Make sure that no components catch.

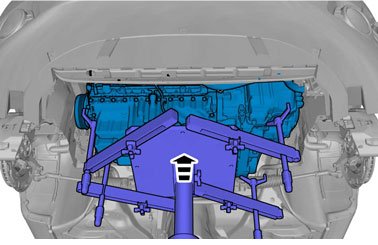

Use: Unit lift.

Install the following items:
- Engine support insulator, right Refer to: Engine Pad right, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC AWD, B6324S4, TF-80SC Engine Pad Right, Replacing
- Engine support insulator left Refer to: Engine Pad Left, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC AWD, B6324S4, TF-80SC Engine Pad Left, Replacing

Torque: M8, 24 Nm

Torque: M6, 10 Nm

Install the following items:
- bevel gear Refer to: Bevel gear, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S4, TF-80SC AWD Bevel Gear
- Drive shaft right Refer to: Drive shaft right, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC AWD, B6324S4, TF-80SC Front Driveshaft, Right
- Driveshaft left Refer to: Driveshaft left, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC AWD, B6324S4, TF-80SC Front Driveshaft, Left
- Front subframe Refer to: Front subframe, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC AWD, B6324S4, TF-80SC Service and Repair
- exhaust manifold Refer to: Exhaust manifold, B6304T4 Service and Repair
- Engine control module (ECM) Refer to: Engine control module (ECM), B6304T4, B6324S5, B6324S4 Service and Repair
- Power steering pump Refer to: Power steering pump, B6304T4, B6324S5, B6324S4 Service and Repair

Fill cooling system, draining, filling, and bleeding Refer to: Cooling system - draining, charging and bleeding, B6304T4, B6324S5, B6324S4 Service and Repair

Fill the oil filter Refer to: Oil filter, B6304T4, B6324S5, B6324S4 Service and Repair

Warning! Make sure that there are no leaks.
