Rear Crankshaft Main Bearing Seal: Service and Repair

Operation number: 21644-0

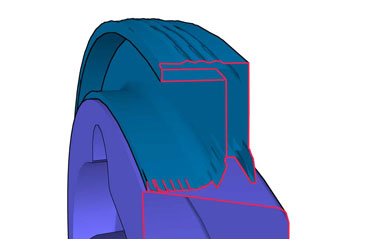

Crankshaft seal, rear











Removal

Remove drive flange plate Refer to: Carrier plate, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC AWD, B6324S4, TF-80SC Service and Repair

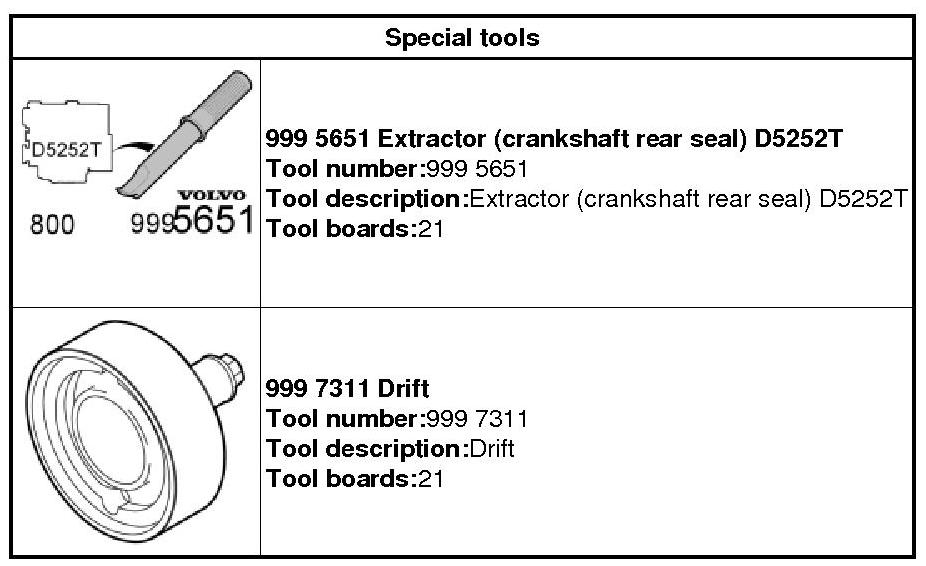

999 5651 Extractor 999 5651 Extractor





Caution! Cleaning must be directed around the crankshaft journal, not along it. Make sure that any residue from the emery cloth and any other foreign materials are completely removed before installing a new crankshaft seal.

Use: Emery paper.

Installation




999 7311 Drift 999 7311 Drift

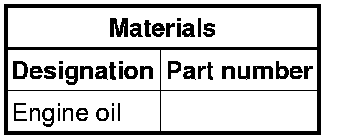

Use: Engine oil,

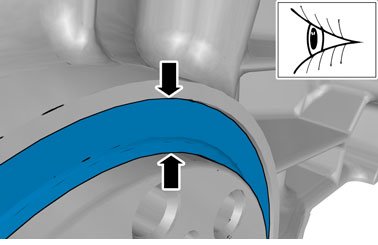

Caution! Make sure that the component is positioned correctly.




Torque: Flexplate, 80 Nm









Caution! Make sure that the component is positioned correctly.

Install the following items:
- flange plate Refer to: Carrier plate, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC AWD, B6324S4, TF-80SC Service and Repair
- the gearbox Refer to: Transmission, B6324S5, TF-80SC, B6324S4, TF-80SC , B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S4, TF-80SC AWD Transmission
