Intermediate Shaft Gasket, Generator Side

Operation number: 21576-3

Intermediate shaft gasket, generator side






Removal

Remove the alternator Refer to: Generator, B6304T4 , B6324S5, B6324S4 Service and Repair

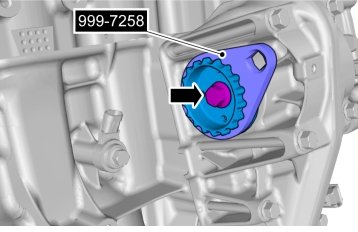

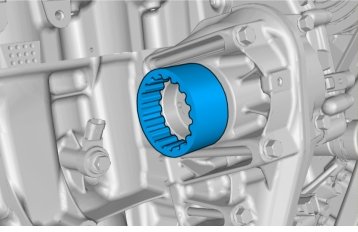

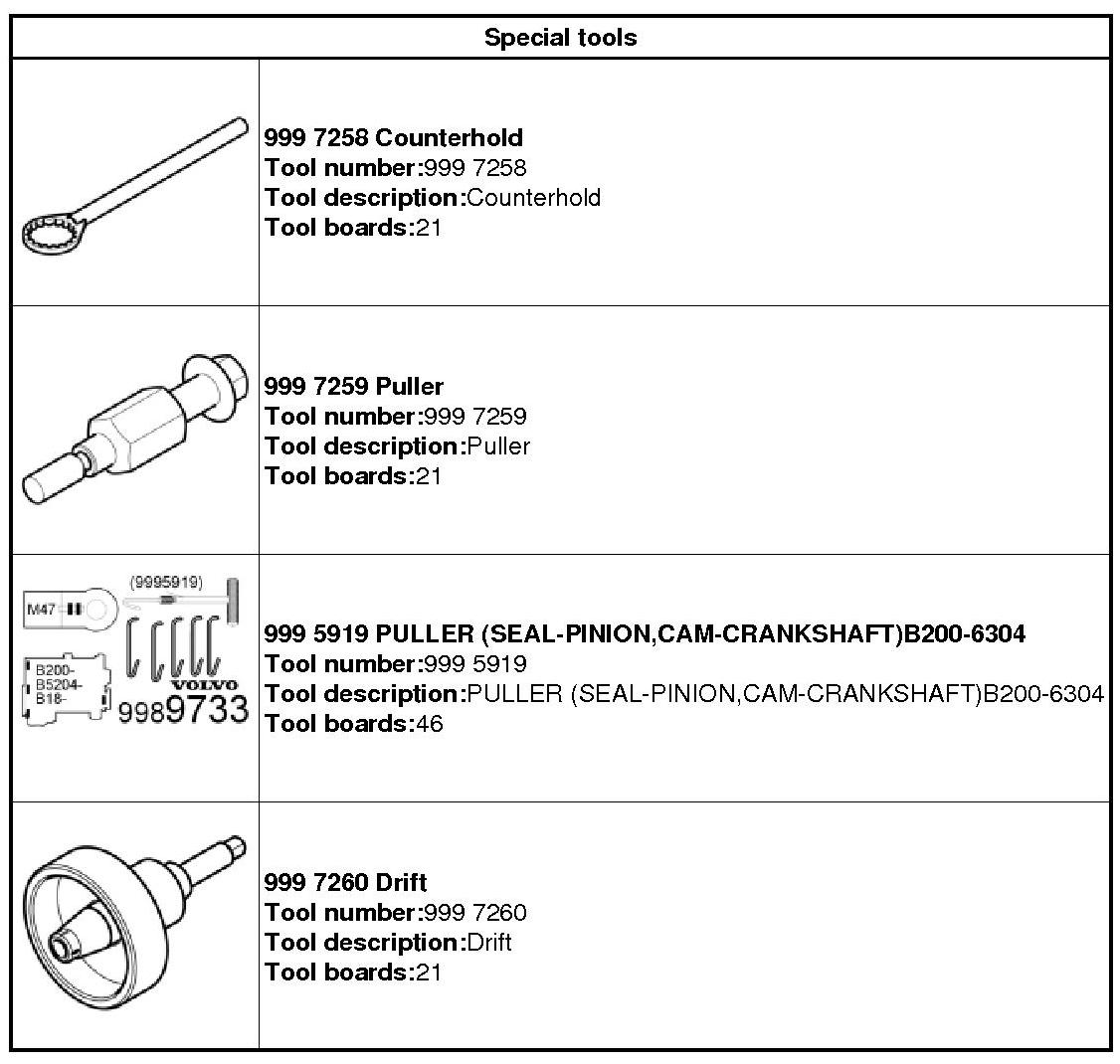

999 7258 Counterhold 999 7258 Counterhold

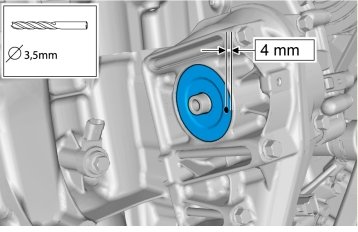

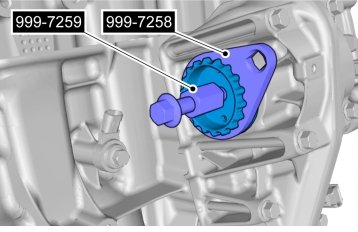

999 7258 Counterhold 999 7258 Counterhold 999 7259 Puller 999 7259 Puller

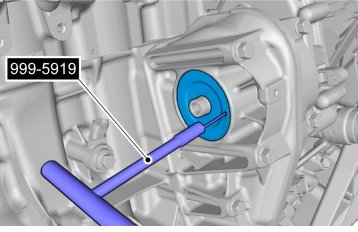

999 5919 PULLER 999 5919 PULLER

Installation





Note! Make sure that the seal is correctly located.

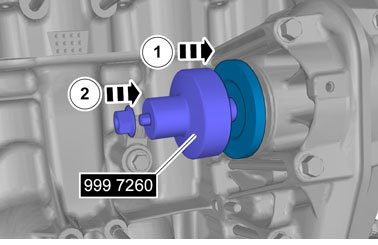

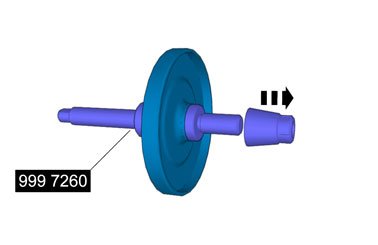

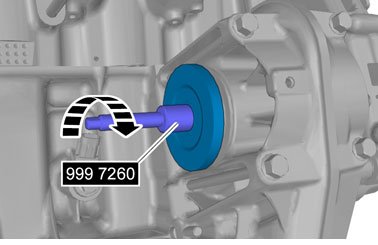

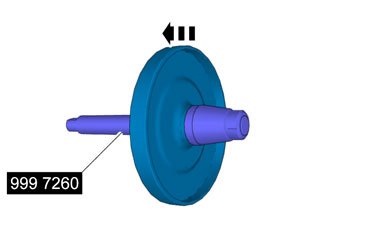

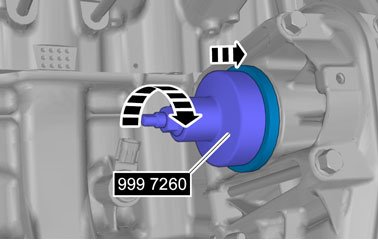

999 7260 Drift 999 7260 Drift




















999 7258 Counterhold 999 7258 Counterhold
Torque: Intermediate shaft alternator side, 40 Nm





Install generator Refer to: Generator, B6324S5, B6324S4 , B6304T4 Service and Repair
