Oil Spray Jet: Service and Repair






Operation number: 22124-2

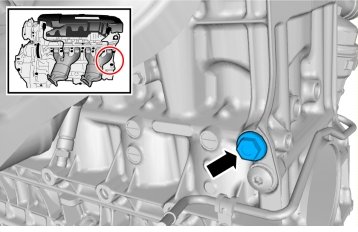

Valve, piston cooling

Removal

Note! Removal steps in this procedure may contain installation details.




Torque: Piston cooling nozzle, 32 Nm

Installation

To install, reverse the removal procedure.
