Crank Mechanism, Assembling

Crank mechanism, assembling

Installation

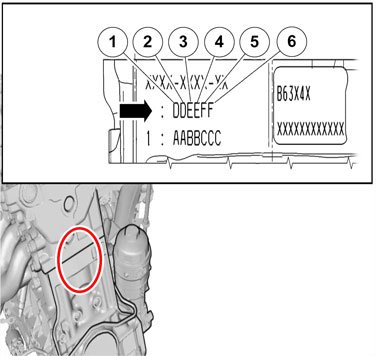

See information about storage classification Refer to: Engine, B6304T4 Engine

Caution! Make sure that the area around the component is clean and free of foreign material.

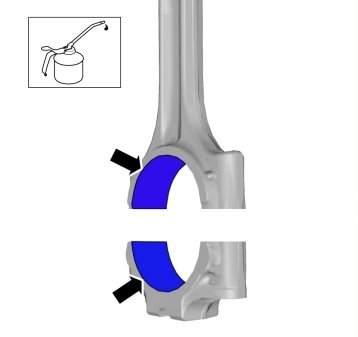

Use: Engine oil,

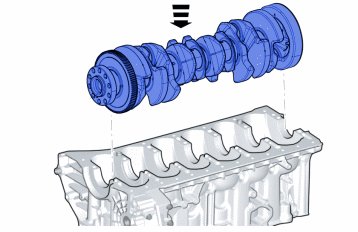

Caution! Take extra care when handling the components.

Caution! Make sure that the crankshaft is not rotated.

Caution! Make sure that the mating faces are clean and free of foreign material.

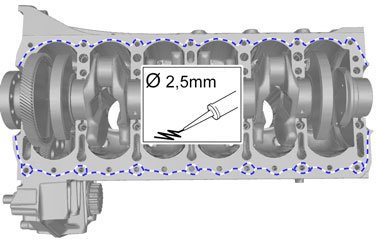

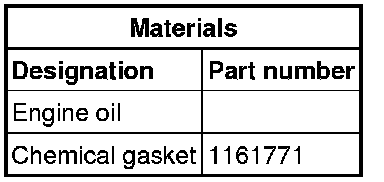

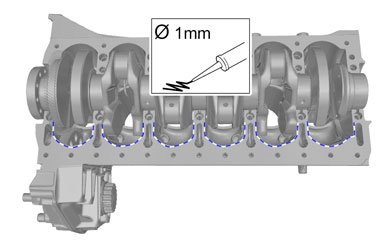

Use: Chemical gasket, 1161771

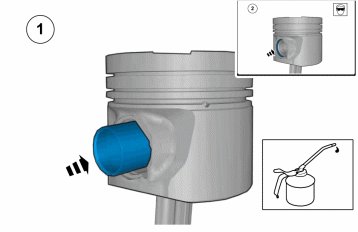

Use: Engine oil,

Torque: Intermediate section for engine block step 1 Stage 1: 5 Nm Stage 2: 30 Nm

Torque: Intermediate section for engine block step 2 , 5 Nm

Torque: Intermediate section for engine block step 3, 25 Nm

Torque: Intermediate section for engine block step 4 , 105 degree

Torque: Intermediate section for engine block step 5 , 25 Nm

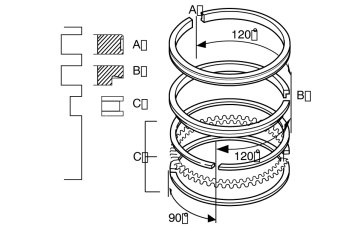

Note! The text on piston ring A must be face up.

Use: Piston ring pliers.

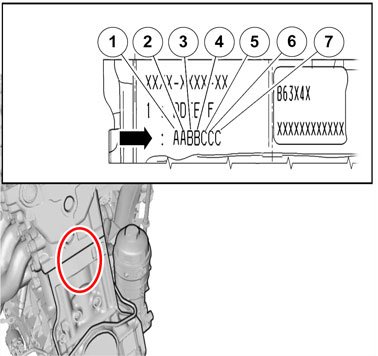

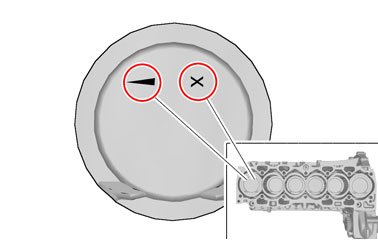

Note! Make sure that the classification of the components correspond with each other.

Caution! Take extra care when handling the components.

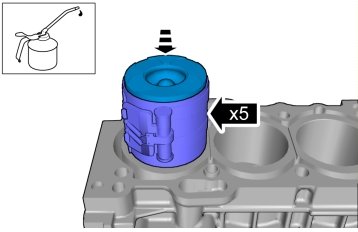

Use: Piston ring compressor.

Caution! Take extra care when handling the components.

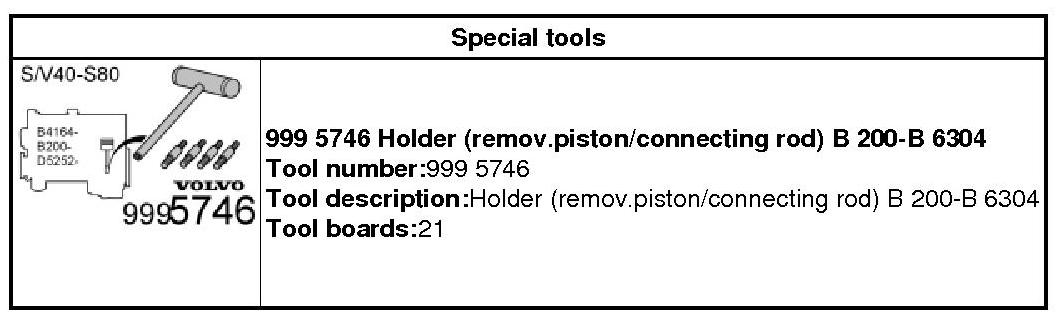

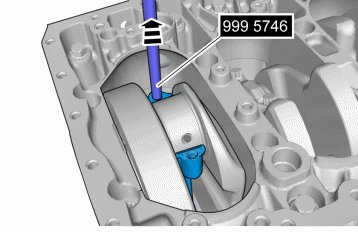

999 5746 Holder 999 5746 Holder

Caution! Make sure that the crankshaft is not rotated.

Note! Make sure that the classification of the components correspond with each other.

Torque: M6, 10 Nm

Install the following items:
- oil pump Refer to: Oil pump, B6324S5, B6324S4 , B6304T4 Service and Repair
- pan Refer to: Oil pan, B6304T4 Service and Repair
- Crankshaft front seal Refer to: Crankshaft front seal, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC AWD, B6324S4, TF-80SC Service and Repair
- Crankshaft seal, rear
