Part 2

Camshafts

999 7263 Counterhold 999 7263 Counterhold 999 7264 Counterhold 999 7264 Counterhold 999 7272 TORX 60 999 7272 TORX 60
1. Torque: Centre bolt, exhaust camshaft Stage 1: 75 Nm Stage 2: 90 degree

2. Torque: Centre bolt, intake camshaft, 110 Nm

Note! Only tighten the bolt finger tight at this stage.

999 7266 Position sensor 999 7266 Position sensor 999 7267 Position sensor 999 7267 Position sensor

Torque: M7, 17 Nm

Torque: Inner timing cover, adjuster screw, 3 Nm

Torque: M8, 24 Nm

Torque: M6, 10 Nm

1. Torque: M6, 10 Nm

2. Torque: M7, 17 Nm

3. Torque: M8, 24 Nm

Note! Make sure that a new component is installed.

999 7265 Drift 999 7265 Drift

999 5760 Counterhold 999 5760 Counterhold 951 2926 Bit torx 50 951 2926 Bit torx 50

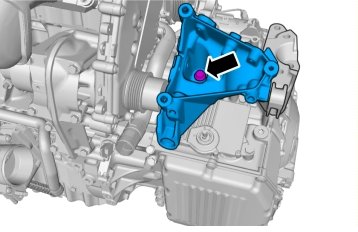

Torque: Belt pulley auxiliary unit, 60 Nm

Note! Only tighten the bolt finger tight at this stage.

Caution! Take extra care when handling the components.

Caution! Only rotate the pulley counterclockwise.

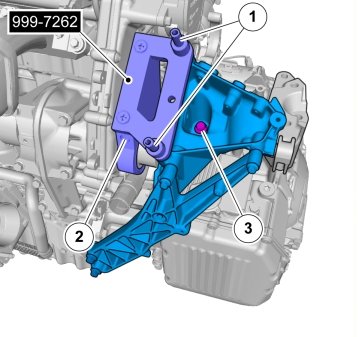

999 7262 Position sensor 999 7262 Position sensor
1.
Note! Only use moderate force.

2.
Note! Only use moderate force.

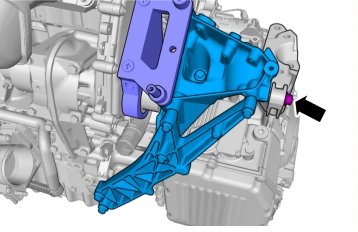

3. Torque: M10, 50 Nm

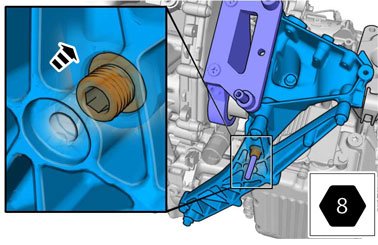

Torque: Accessory Drive Component, adjusting screw, 1 Nm

Use: Allen key.

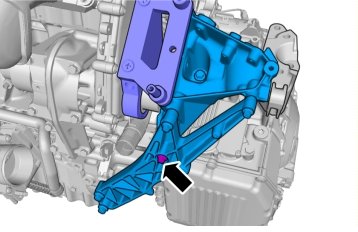

Torque: M10, 50 Nm

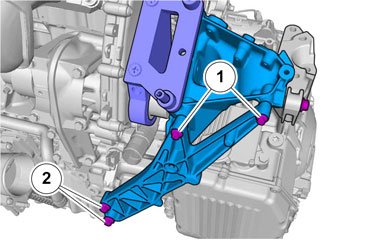

1. Torque: M8, 24 Nm

2. Torque: M10, 50 Nm

Use: Allen key.
Torque: Accessory Drive Component, adjusting screw, 1 Nm

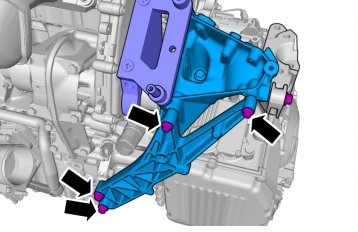

Torque: M8, 24 Nm

Install the auxiliaries belt Refer to: Accessory Drive Belt, B6304T4 Service and Repair

Torque: M7, 17 Nm

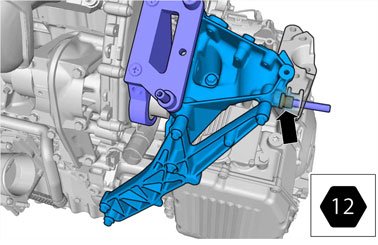

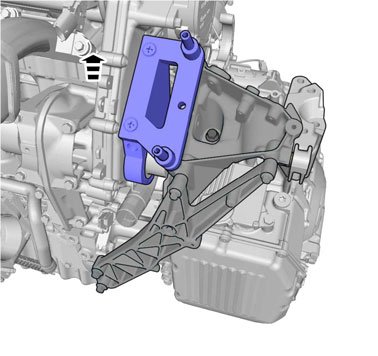

Torque: M12, 80 Nm

Install crankshaft seal, front Refer to: Crankshaft front seal, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC AWD, B6324S4, TF-80SC Service and Repair

Fill cooling system, draining, filling, and bleeding Refer to: Cooling system - draining, charging and bleeding, B6304T4, B6324S5, B6324S4 Service and Repair
