Connector Type 9

Connector type 9

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Note! Removal steps in this procedure may contain installation details.





Pry up the secondary catch
Use: Electrician's screwdriver.

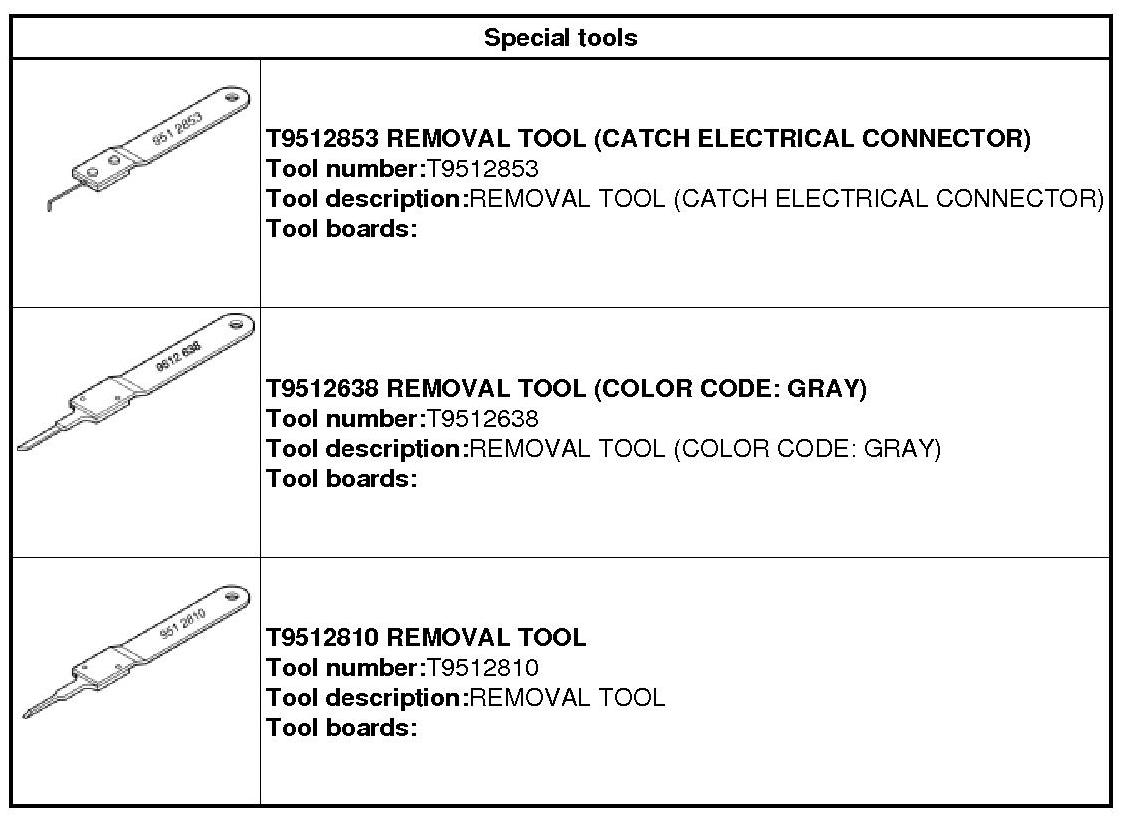

951 2853 Terminal removal tool 951 2853 Terminal removal tool.





951 2638 Terminal removal tool 951 2638 Terminal removal tool or 951 2810 Terminal removal tool 951 2810 Terminal removal tool.
At the same time carefully pull the cable backwards.

Installation

Make sure that the cable shoe catches are undamaged.
Press the cable shoe into the insulator.
Make sure that the cable shoe has locked in place by tugging gently on the cable.

Press the secondary catch into place.
