Brake Disc Front, Checking

Brake disc front, checking






Check

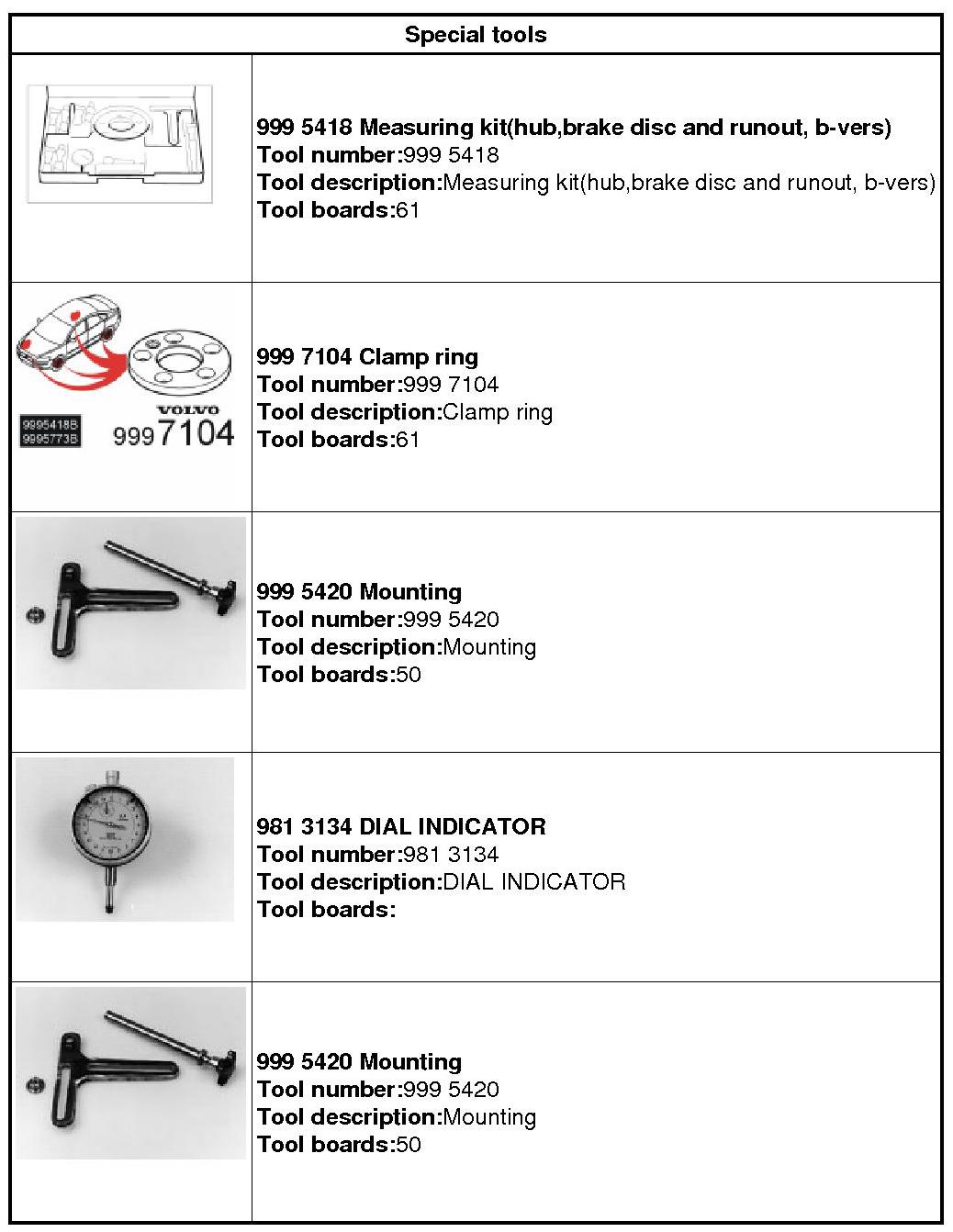

999 5418 Measuring kit 999 5418 Measuring kit

Remove brake caliper, front Refer to: Front brake caliper, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC AWD, B6324S4, TF-80SC Brake Calipers Front, Replacing





Note! Make sure that the mating faces are clean and free of foreign material.

999 7104 Clamp ring 999 7104 Clamp ring
Torque: M14, 130 Nm




999 5420 Mounting 999 5420 Mounting




Slowly rotate the brake disc and note the dial indicator gauge readings.
981 3134 DIAL INDICATOR 981 3134 DIAL INDICATOR 999 5420 Mounting 999 5420 Mounting

Note! The following steps are only necessary when installing a new component.

Perform wheel hub front, checking

Remove the front brake disc Refer to: Front brake disc, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC AWD, B6324S4, TF-80SC Brake Disc Front, Replacing

Installation

Install brake caliper front Refer to: Front brake caliper, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC AWD, B6324S4, TF-80SC Brake Calipers Front, Replacing

Note! This step is only necessary when installing a new component.

Install brake disc front Refer to: Front brake disc, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC AWD, B6324S4, TF-80SC Brake Disc Front, Replacing
