Brake Pads Rear, Replacing

Operation number: 51227-2

Brake pads rear











Removal

Note! Removal steps in this procedure may contain installation details.

Follow instructions about safety information brake system Refer to: Safety information brake system Service Precautions

Activate service mode

Remove rear wheel Refer to: Wheels Service and Repair

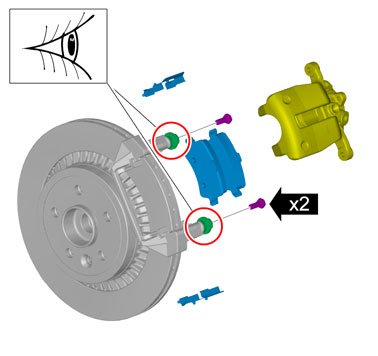

Warning! Make sure that no load is placed on the brake hose.

Torque: Slide rail rear brake caliper, 35 Nm

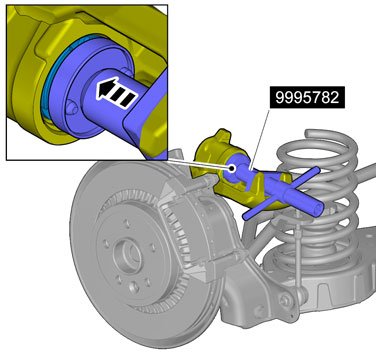

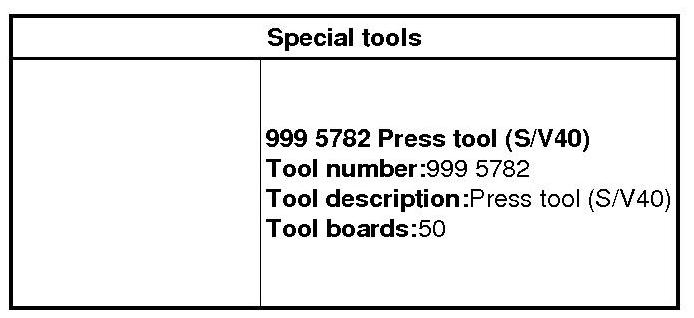

999 5782 Press tool 999 5782 Press tool

Installation

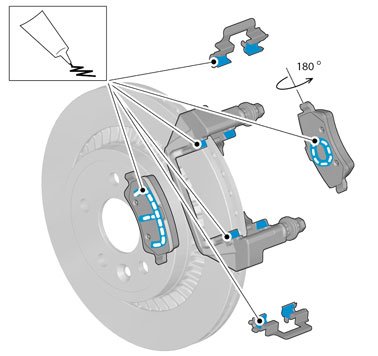

Note! Make sure that the mating faces are clean and free of foreign material.

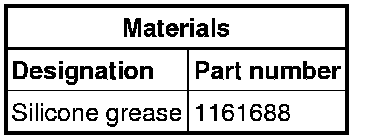

Use: Silicone grease, 1161688

To install, reverse the removal procedure.

Deactivate service mode
