Removal and Replacement

Pedal box, brake

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:
- Combined instrument panel Refer to: Combined instrument panel Combined Instrument Panel
- Stoplamp switch
- Accelerator pedal Refer to: Accelerator pedal Removal and Replacement

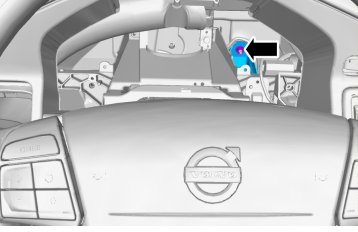

Torque: M8, 24 Nm

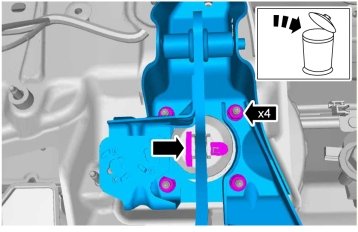

Torque: M8, 24 Nm

Installation

To install, reverse the removal procedure.
