Electric Motor Height Adjustment

Operation number: 85222-2

Electric motor height adjustment

Removal

Note! Removal steps in this procedure may contain installation details.





Remove front seat

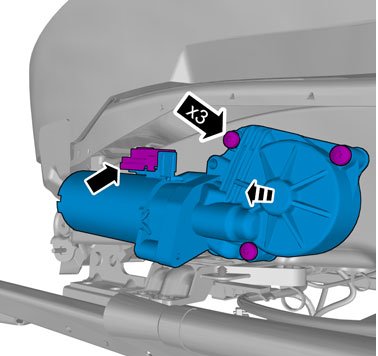

Detach the following items:
1. Torque: M6, 10 Nm

2. Torque: M8, 24 Nm




Torque: M5, 5 Nm

Installation

To install, reverse the removal procedure.
