Electric Motor Front-Rear Adjustment






Operation number: 85237-2

Electric motor front-rear adjustment

Removal

Note! Removal steps in this procedure may contain installation details.

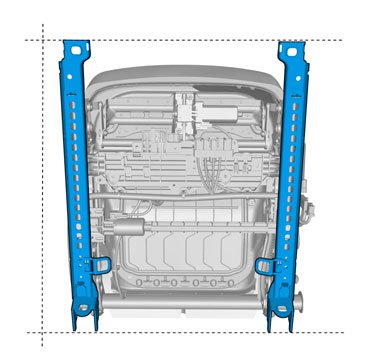

Remove front seat

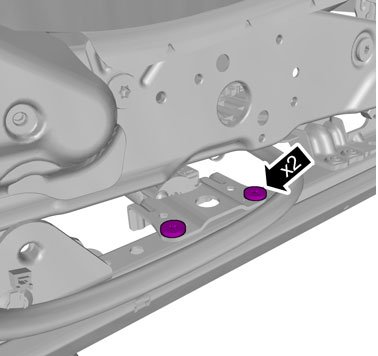

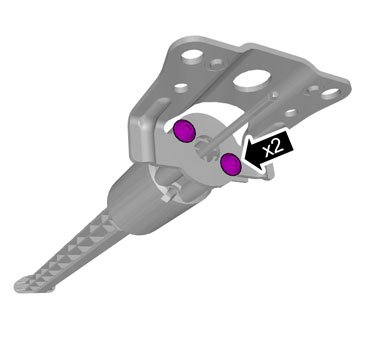

Torque: Motor Bracket to Seat Track, 22 Nm





















Installation

To install, reverse the removal procedure.
