Removal and Replacement






Operation number: 85721-285720-2

Child safety seat

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the seat cushion, rear seat Refer to: Seat cushion, rear seat Seat Cushion, Rear Seat

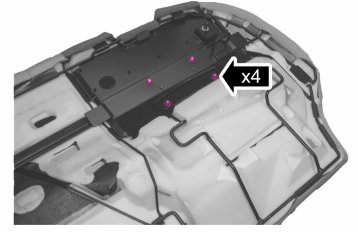

Torque: M6, 10 Nm





























Installation

To install, reverse the removal procedure.
