Child Seat, ISOFIX Mounting Front

Child seat, ISOFIX mounting front























INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimise the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Child seat, ISOFIX mounting front

Warning! Never place the child seat on the front passenger seat if the car is equipped with activated SRS (Airbag) on the passenger side.If you have difficulties installing a child safety product contact the manufacturer for clearer installation instructions.

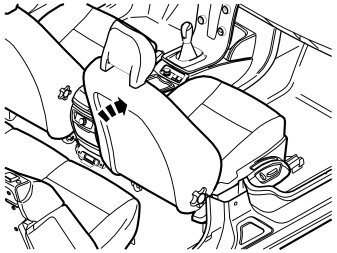

- Fold the backrest forward on the front passenger side.

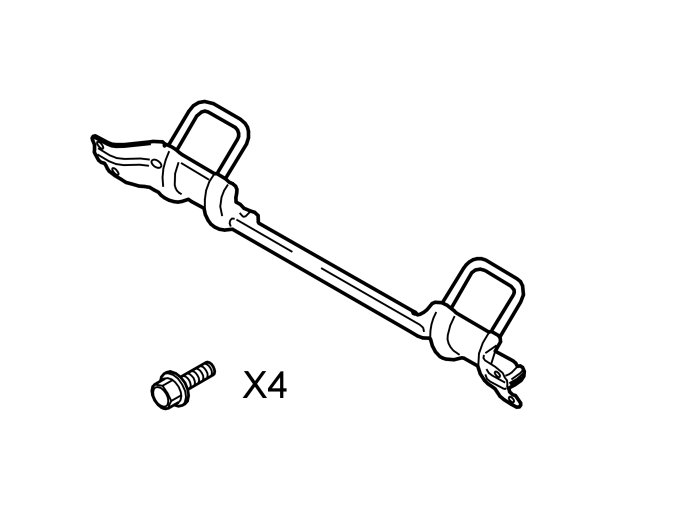

- Install the ISOFIX attachment to the SIPS tube with the four screws from the kit. Tighten the screws to 10 Nm (7.5 lbf.ft.)
- Reset the backrest.
