Sunroof / Moonroof Weatherstrip: Service and Repair

Roof Opening Panel Cassette Outer Seal

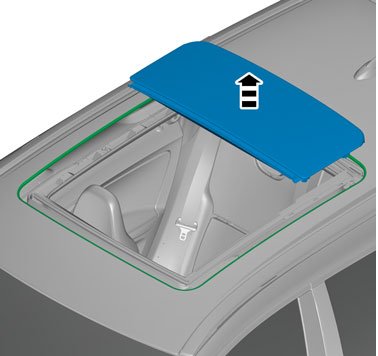

Removal

Note! Removal steps in this procedure may contain installation details.

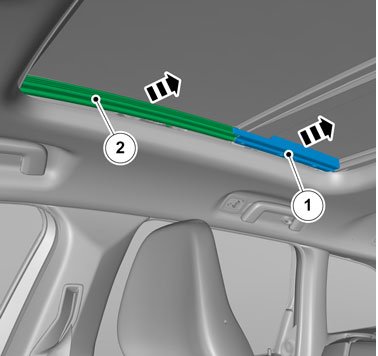

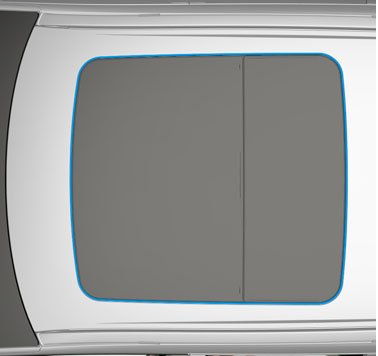

On both sides.

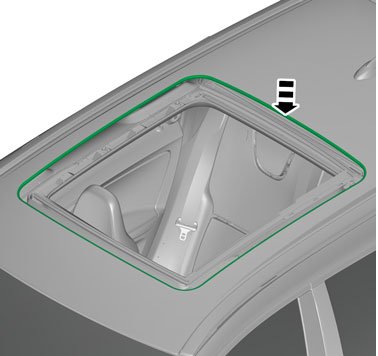

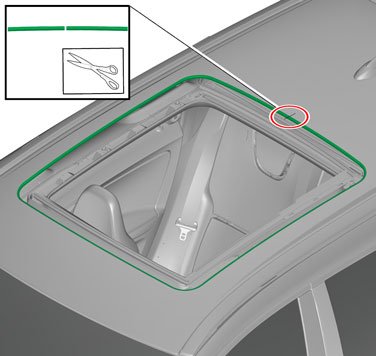

Caution! The component must be removed by hand. Tools may not be used.

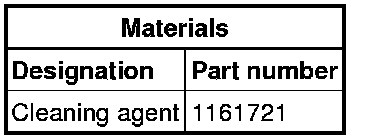

Use: Cleaning agent, 1161721

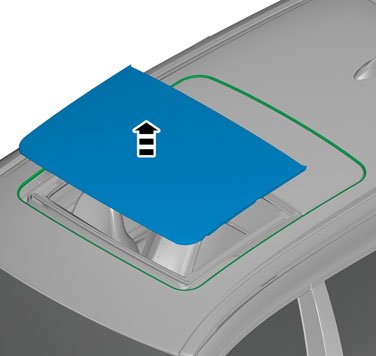

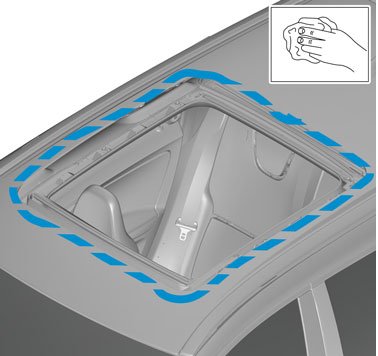

Follow the instructions regarding components with double-sided adhesive tape Refer to: Components with double-sided tape Service and Repair

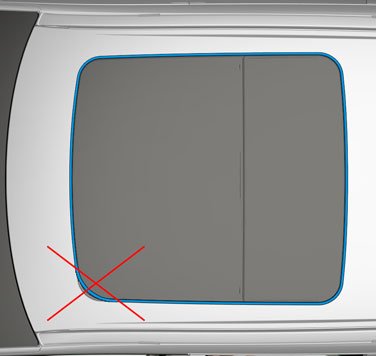

Note! Make sure that the tape has not detached from the edges of the component.

Installation

To install, reverse the removal procedure.

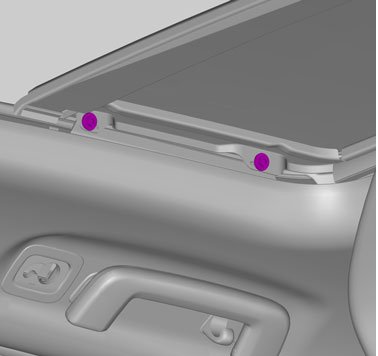

Operate roof hatch Refer to: Sun roof Adjustments
