Extended Roof Opening Panel Cassette

Extended Roof Opening Panel Cassette

Removal

Remove the headlining Refer to: Headlining Service and Repair

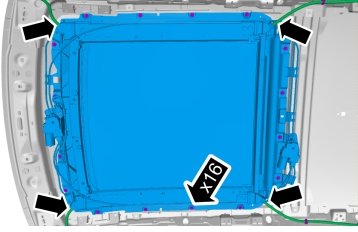

Torque: M6, 10 Nm

Installation

Install the headlining Refer to: Headlining Service and Repair

Perform electric motor/Sun Roof Module (SRM), calibration Refer to: Electric motor / sun roof module (SRM), calibration Procedures

Perform roof hatch seal check Refer to: Leak testing the sun roof Testing and Inspection
