Sunroof / Moonroof: Adjustments






Sun roof

Removal

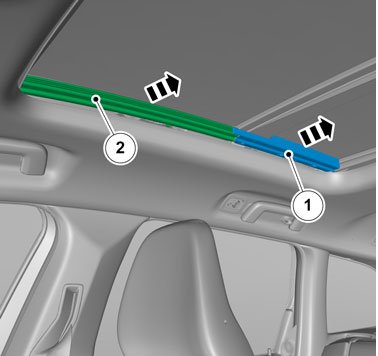

Remove the roof hatch apron moulding

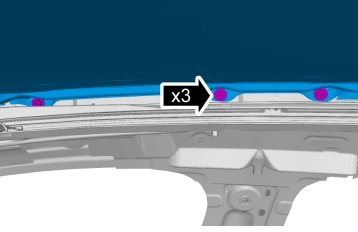

Torque: M5, 5 Nm

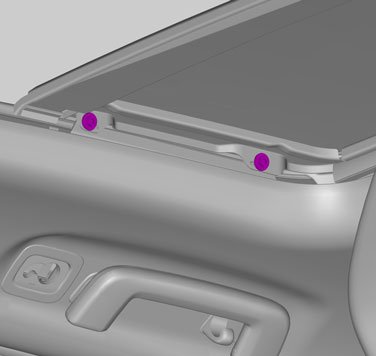

Torque: M5, 5 Nm

















Install the roof hatch apron moulding
