Collision Member

This article uses a picture philosophy in the instructions for mechanical work methods. The instructions focus on the pictures and include text only if it is impossible to show the work method in the pictures. For further information, refer to: Images In Service Information

Collision Member

Operation number:
86325-2

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove casing bumper front










Remove the following items:

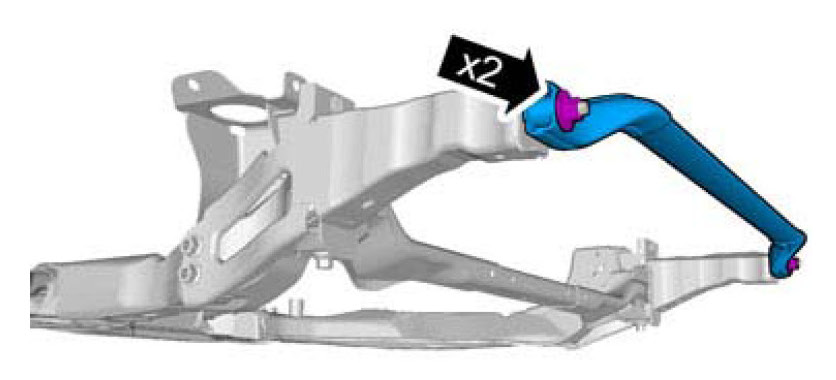

1. Torque: Collision member for subframe upper, 100 Nm

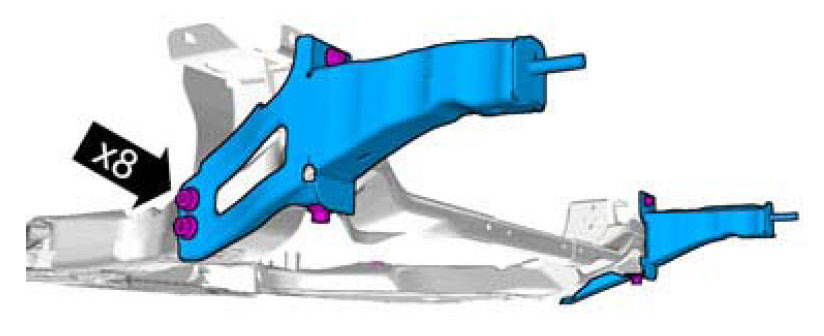

2. Torque: Collision member for subframe lower, 100 Nm

Installation

To install, reverse the removal procedure.
