Side Panel Loadspace

Operation number: 85531-2

Side panel loadspace

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

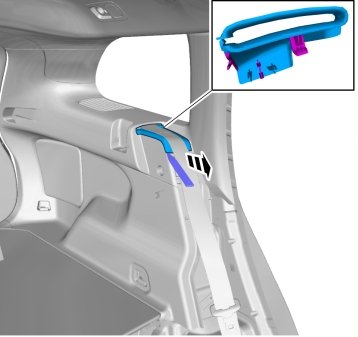

Remove the panel. Refer to: Cant rail panel Cantrail Panel
Remove the panel. Refer to: C-pillar trim panel C-Pillar Trim Panel

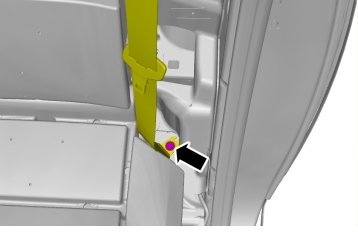

Torque: Safety belt retractor rear to body, 40 Nm

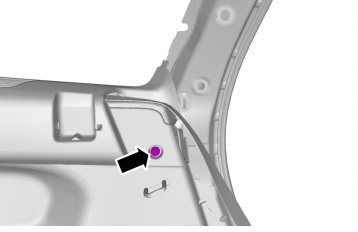

Torque: M6, 10 Nm














Torque: M8, 24 Nm

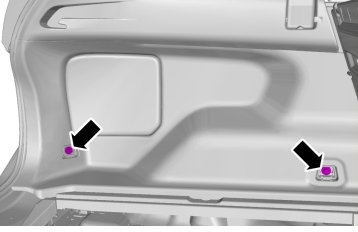

Torque: M6, 10 Nm






Installation

To install, reverse the removal procedure.
