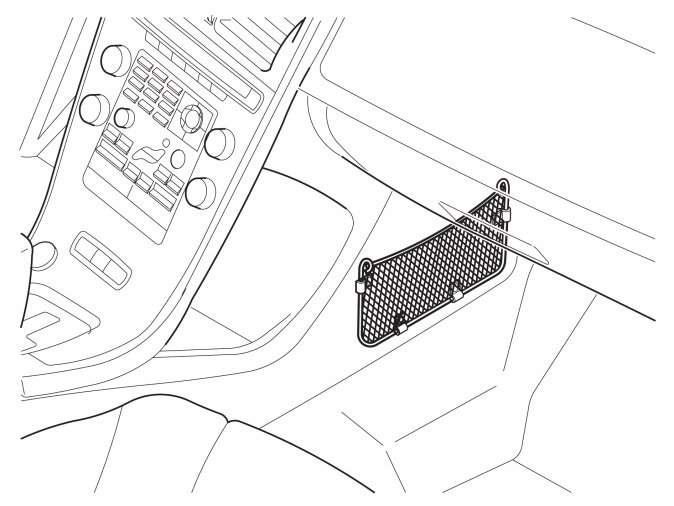

Mesh Pocket, Tunnel Console

Mesh pocket, tunnel console



































INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimise the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Mesh pocket, tunnel console





- Remove the tunnel console's right-hand side panel by carefully pulling it away. Start at the front edge. The side panel is secured with five clips on the inside.





- Place the mesh pocket on the panel with the front edge of the clips 4 mm (5/32") from the panel's front and rear edge. Attach the mesh pocket using tape to secure it.

Note! Take care not to damage the pocket lugs.

- Drill holes through the clip holes and through the panel. Use a -5 mm (13/64") drill bit.
- File down the edges of the holes.





- Position the mesh pocket with the clips against the holes in the side panel and with the pocket's buttons (1) pointing outwards.
- Rivet the clips with the mesh pocket to the panel.

Note! Ensure that the pocket is not trapped by the rivet heads.
