Decor Panel, Center Panel
Decor panel, center panel
Equipment

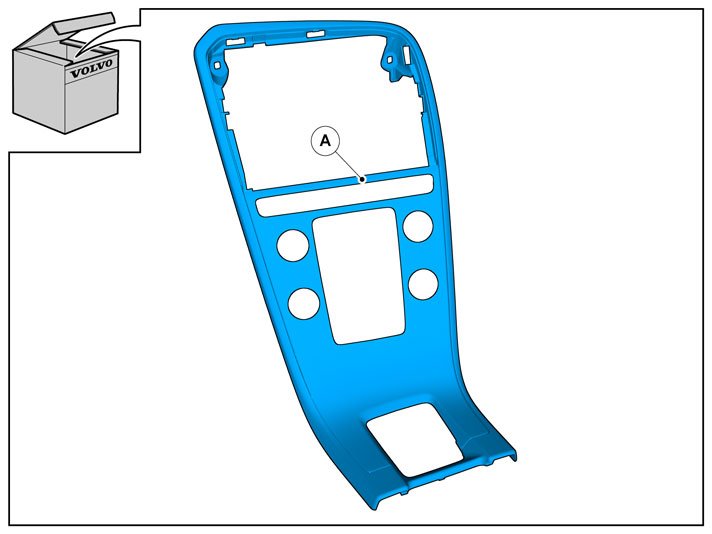

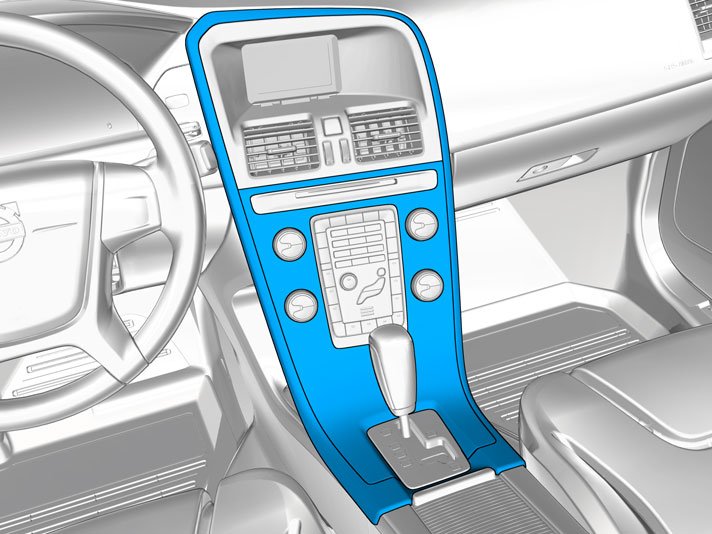

Component overview
Operation number: 88128
Information
Read through all the instructions before installation. Notes and warning texts are for your safety and to minimise the risk of something breaking during installation. Ensure that all tools indicated in the instructions are available before starting the installation. Certain steps in the instructions only have images. More complicated steps also include explanatory text. In the event of any problems with the instructions or accessory, contact your local Volvo dealer.
Conditions
Note! Make sure that the ignition key is in the OFF position.
Removal

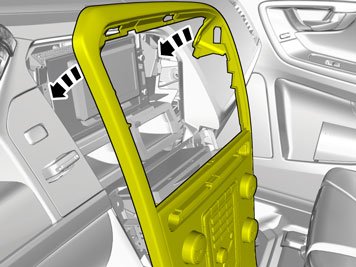

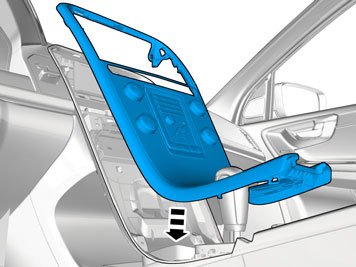

Detach the panel.

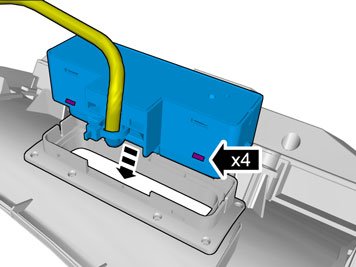

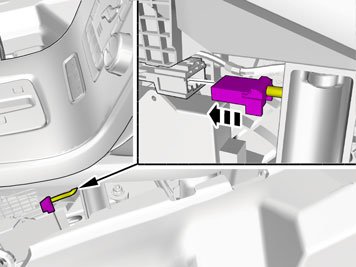

Disconnect the connector.
Release the lock.

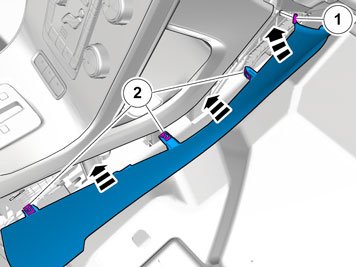

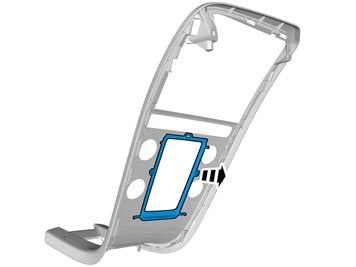

Remove the panel.

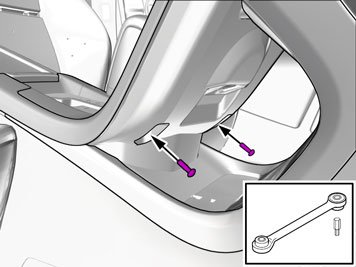

Remove the screws.

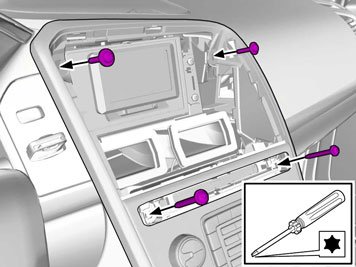

Remove the screws.
Cars with automatic transmissions

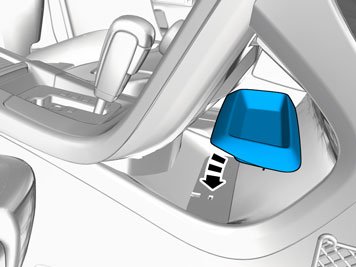

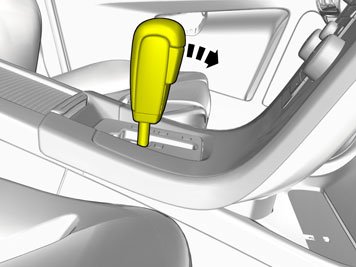

Release the shift-lock function.
Vehicles with the 4C system.

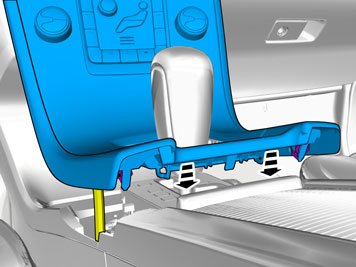

Remove the panel.
Disconnect the connector.
All vehicles
Caution! Use suitable tape to protect the components.

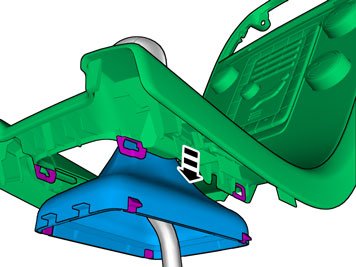

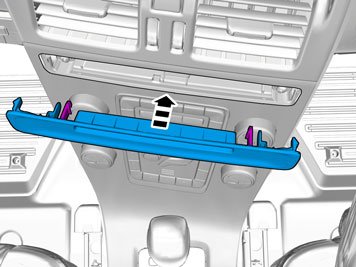

Detach the panel.
Detach the panel.
Vehicles with the 4C system.
Cars with manual transmissions
All vehicles

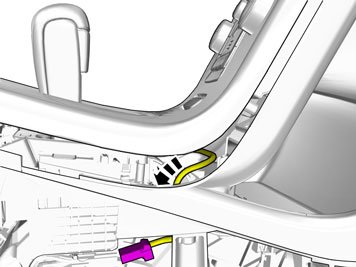

Unhook the cable harness clips.

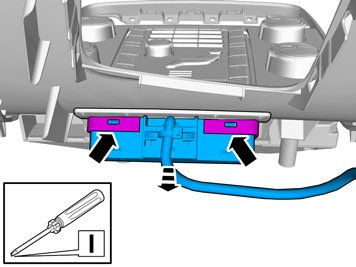

Disconnect the connector.
Vehicles with the 4C system.
All vehicles
Remove the screws.
Installation
Reinstall the screws.
Vehicles with the 4C system.
All vehicles
Connect the cable harness.
Install the clips as illustrated.
Vehicles with the 4C system.
Cars with manual transmissions
All vehicles
Caution! Make sure that no part of the wiring harness is trapped.
Install the panel.
Install the panel.
Reinstall the screws.
Cars with automatic transmissions
Vehicles with the 4C system.
Connect the connector.
Install the panel.
All vehicles
Reinstall the screws.
Connect the connector.
Install the panel.
Install the panel.
Kit Numbers:
1302398
1302399
1302404
1302405
1302406
1302407
1302408
1302409
1302410
1302411
1302412
1302413
