Headliner: Service and Repair

Headlining











Removal

Note! Removal steps in this procedure may contain installation details.













Remove the following items:
- A-pillar trim panel Refer to: A-pillar trim panel A-Pillar Trim Panel
- B-pillar trim panel Refer to: B-pillar trim panel B-Pillar Trim Panel
- Lighting, internal front Refer to: Lighting, internal front Front Interior Lighting
- the glove compartment Refer to: Glove compartment Glove Compartment
- Side panel loadspace Refer to: Side panel loadspace Side Panel Loadspace

Loosen sun visor Refer to: Sun visor Sun Visor, Replacing

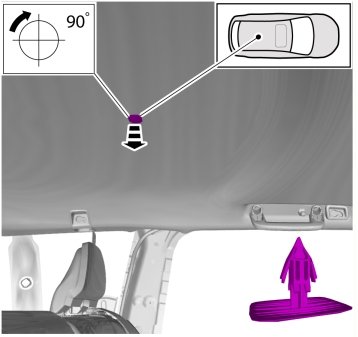

Vehicles without roof opening panel

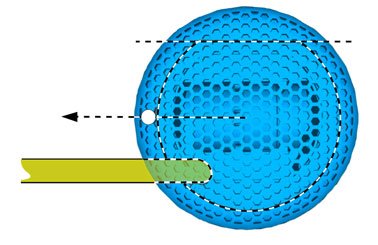

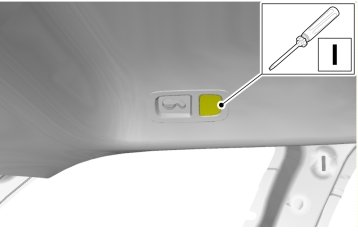

Vehicles with Headliner Cellular Phone Microphone





All vehicles

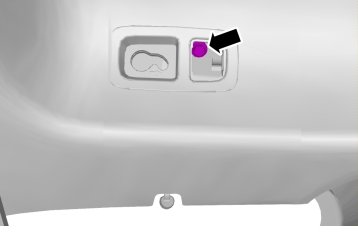

Torque: M6, 10 Nm




Torque: M6, 10 Nm

On both sides.




Torque: M6, 10 Nm

On both sides.




On both sides.




Torque: M8, 24 Nm

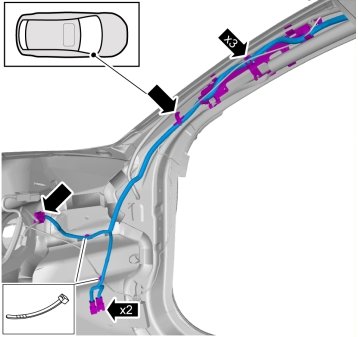

On both sides.

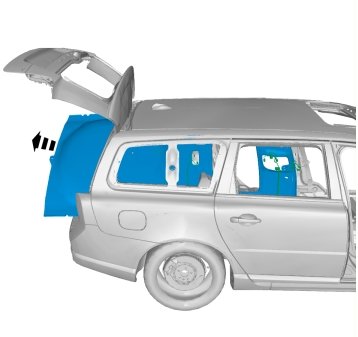

Caution! Take extra care not to crease the headliner.

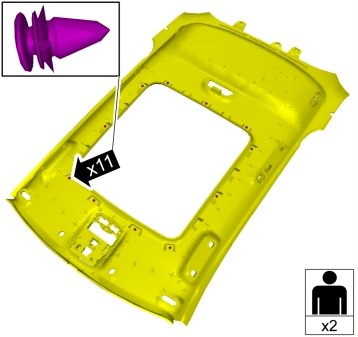

Note! This step requires the aid of another technician.

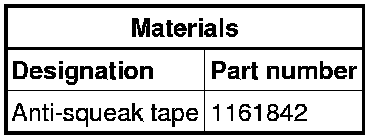

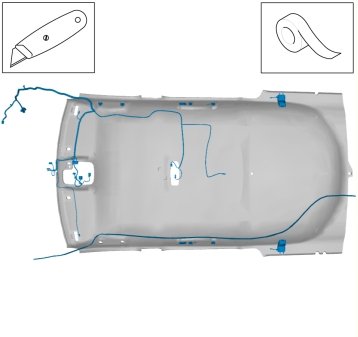

Use: Anti-squeak tape, 1161842

Installation

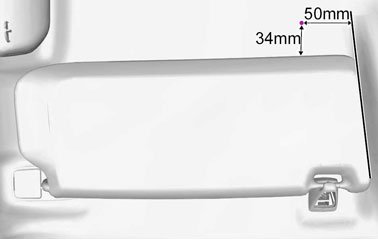

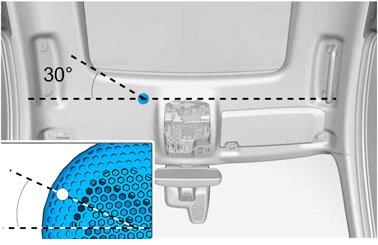

Vehicles with Headliner Cellular Phone Microphone

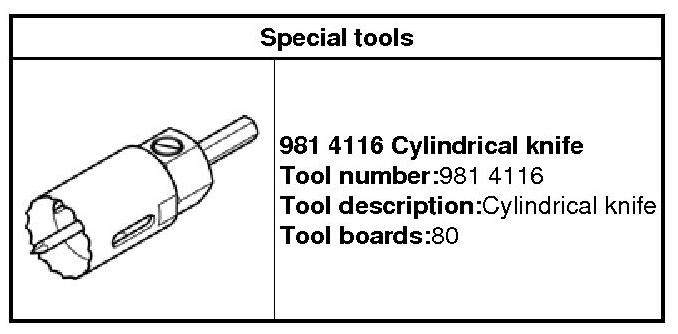

981 4116 Hole saw 981 4116 Hole saw

















All vehicles

To install, reverse the removal procedure.
