Floor Console

Floor console

Removal

Note! Removal steps in this procedure may contain installation details.

Perform battery disconnecting and connecting. Battery, Disconnecting

Remove center console Refer to: Center console, TF-80SC AWD, TF-80SC Center Console

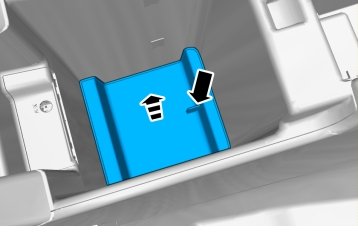

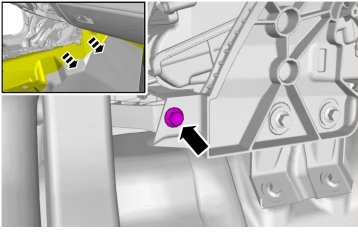

Remove cup holder floor console Refer to: Floor Consol Cup holder Floor Console Cup Holder

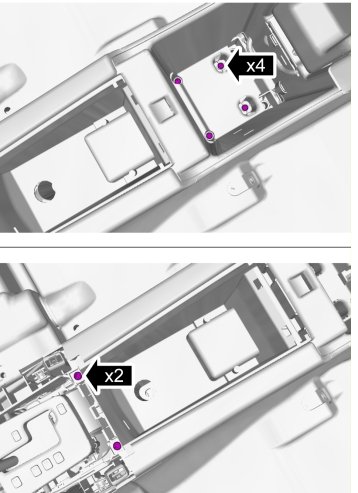

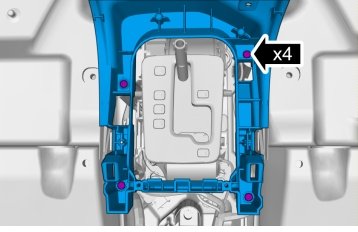

Torque: M8, 24 Nm

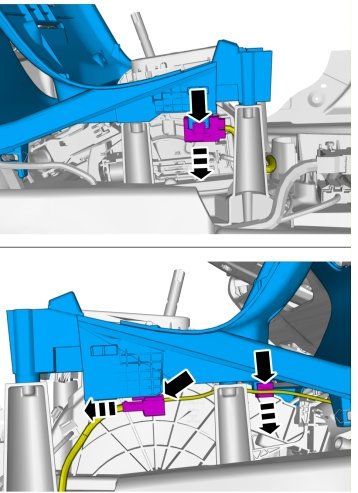

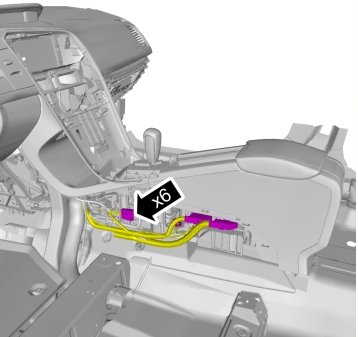

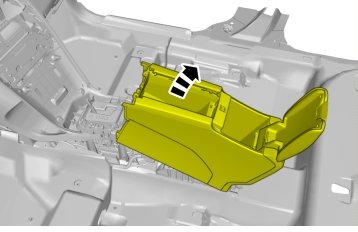

Caution! The number of connectors, cables and cable ties may vary depending on the vehicle specification.

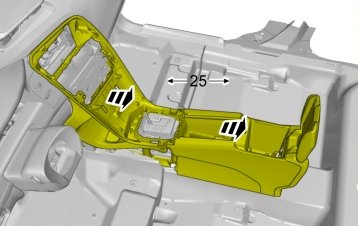

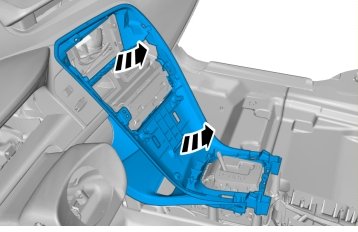

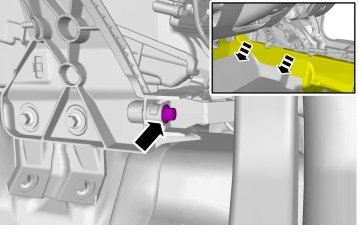

On both sides.

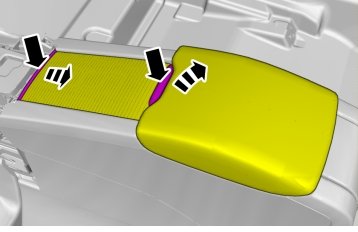

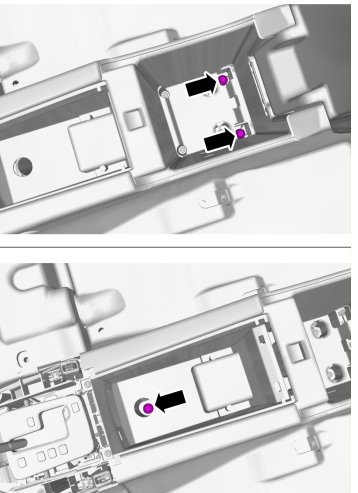

Remove cover/center armrest Refer to: Cover/armrest tunnel compartment Cover/Armrest Tunnel Compartment

Caution! Take extra care when handling the component.

Installation

To install, reverse the removal procedure.

Adjust the gear selector cable Refer to: Gear selector cable, adjusting, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC AWD, B6324S4, TF-80SC Adjustments
